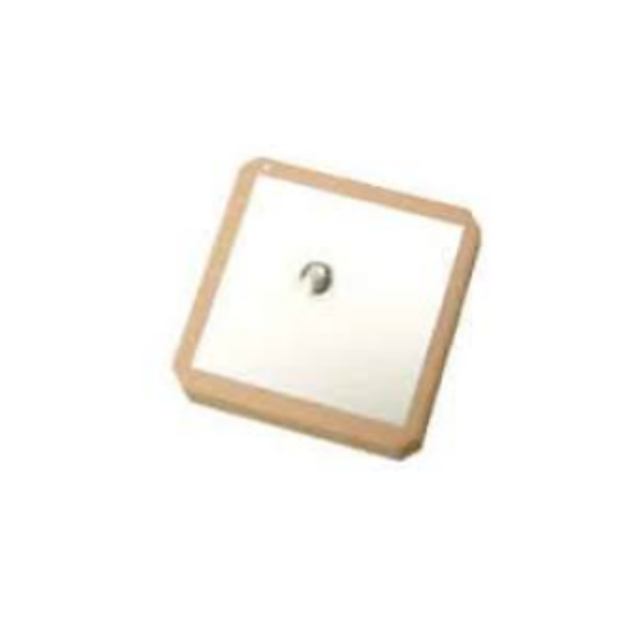

GL1575S18T2
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
1. ELECTRICAL SPECIFICATIONS
NO. | Part Number | Outline Dimension | Ground Plane |
1-1 | GL1575S18T2 | 18*18*2mm | On the PCB board from customer |
1-2 | Center Frequency | 1575.42-1610 | |
1-3 | Bandwidth | 34.58MHz | |
1-4 | Impedance | 50Ω | |
1-5 | Gain @ Zenith | 1.5dBi typical | |
1-6 | Frequency Temperature Coefficient | 0±10 ppm/℃ | |
1-7 | Return Loss @fo | 20dB min. | |
1-8 | V.S.R.W | 1.5 max. | |
1-9 | Axial Ratio @fo | 5.0dB max | |
2. STRUCTURE AND MATERIAL
No. | Description | Structure and material |
2-1 | Antenna Substrate | Dielectric Ceramics |
2-2 | Pin | Copper |
2-3 | Electrode | Ag plated |
2-4 | Ground Base | Ag plated |
3.PHYSICAL DIMENSIONS
4.ENVIRONMENTAL SPECIFICATIONS
Standard Condition : Temperature range:25±3℃
Relative Humidity range: 55~75%RH
Operating Temperature range:-40℃~+85℃
Storage Temperature range: -40℃~+100℃
4.1 High Temperature Endurance
The device should satisfy the specification in Table 1 after exposed to temperature 85±5℃
for 24±2 hours and 1~2 hours recovery time under normal temperature.
4.2 Low Temperature Endurance
The device should also satisfy the specification in Table 1 after exposed to the temperature
-40℃±5℃ for 24±2 hours and 1~2 hours recovery time under normal temperature.
4.3 Moisture Proof
The device should satisfy the specification in Table 1 after exposed to the temperature 40±2
℃ and the relative humidity 90~95% RH for 96 hours and 1~2 hours recovery time under
normal condition.
4.4 Vibration Resist
The device should satisfy the specification in Table 1 after applied to the vibration of 10 to
55Hz with amplitude of 1.5mm for 2 hours each in X , Y and Z directions.
4.5 Drop Shock
The device should satisfy the specification in Table 1 after dropping onto the hard wooden
board from the height of 30cm for 3 times each facet of the 3 dimensions of the device.
4.6 Temperature Cycle Test
The device should also satisfy the specification in Table 1 after exposed to the low
temperature -25℃ and high temperature +85℃ for 30±2 min each by 5 cycles and 1 to 2
hours recovery time under normal temperature.
FAQ
Q:Can I get one sample?
A:Yes, sample is available.
Q:What's the delivery time?
A:3-5 working days for the sample, 10-15 working days for quantity below 5K.
Q: What are the key features of the GL1575S18T GPS ceramic antenna?
A: The GL1575S18T GPS ceramic antenna is engineered for high-performance GPS navigation. It features an active design with a dielectric ceramic substrate, ensuring reliable signal reception. The antenna utilizes a copper pin, enhancing both its durability and conductivity. Additionally, it boasts a frequency temperature coefficient of 0±10 ppm/℃, which guarantees stable performance across varying temperatures. This antenna is ideal for applications requiring accurate and robust GPS functionality.
Q: How does the GL1575S18T antenna compare to standard GPS antennas?
A: The GL1575S18T GPS ceramic antenna stands out from standard GPS antennas due to its active design and superior materials. The use of dielectric ceramics provides excellent signal integrity, and the copper pin enhances its operational reliability. Additionally, the precise frequency temperature coefficient ensures consistent performance, making it a top choice for professional navigation systems. Whether for automotive applications or robotics, the GL1575S18T is designed to outperform conventional antennas.
Q: Can the GL1575S18T antenna be used in outdoor applications?
A: Absolutely! The GL1575S18T GPS ceramic antenna is specifically designed for both indoor and outdoor applications. Its robust construction and effective signal reception capabilities make it ideal for use in harsh environmental conditions. Whether you're integrating it into a vehicle navigation system, a drone, or other outdoor equipment, you can trust that this antenna will deliver reliable GPS performance.
Q4: What installation considerations should I keep in mind for the GL1575S18T antenna?
A:When installing the GL1575S18T GPS ceramic antenna, it's essential to mount it in a location with minimal obstructions to maximize signal reception. Ensure that the antenna is placed away from metallic surfaces or other electronic devices that might interfere with GPS signals. Additionally, follow the manufacturer's guidelines regarding power supply and connection to ensure optimal performance. With proper installation, you can expect exceptional GPS accuracy and reliability.
Q5: Is the GL1575S18T antenna compatible with all GPS systems?
A: The GL1575S18T GPS ceramic antenna is compatible with most GPS systems that operate within the L1 band. It can effectively be used with a wide range of devices and applications, including automotive navigation, handheld GPS units, and various telematics solutions. However, we recommend verifying the specifications of your GPS device to ensure optimal compatibility and performance.
Q:What is the packing weight of GPS ceramic antenna GL1575S18T2?
A:The size of 100 products in a box is 12*20*10cm and the weight is about 1.1KG. The size of 1500 products in a box is 39*62*20cm and the weight is about 16.4KG.
