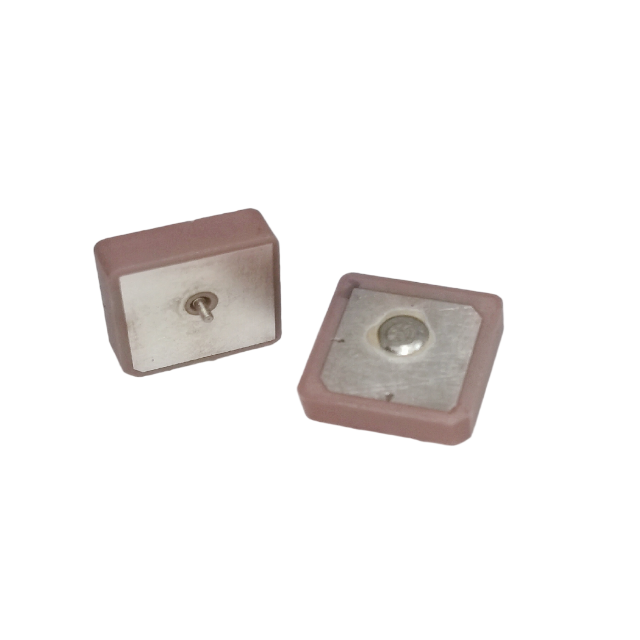

1575.42MHz Small footprint 13mm GPS Ceramic Antenna GL-DY1304

Ideal for space-constrained applications, its 13mm footprint ensures seamless integration into small devices without compromising performance.
  • GL-DY1304

  • Asialeren

  • 8517710000

  • GL-DY1304.pdf

Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

SPECIFICATIONS

Item

Specifications

Center frequency

1575.42MHz

Bandwidth

±2MHz

Reception polarization

RHCP

Gain

-1.5dBic

Output impedance

50Ω

VSWR at CF max

1.5

DIMENSION

Ceramic Antenna1304 dimension

Impedance Characteristic(1575MHz)

Impedance Characteristic 1304

Test fixture

Test fixture 1304

Product Introduction

  1. Ultra-Compact Design
    Ideal for space-constrained applications, its 13mm footprint ensures seamless integration into small devices without compromising performance.

  2. Right-Hand Circular Polarization (RHCP)
    Enhances signal reliability in dynamic environments (e.g., moving vehicles) by reducing multipath interference for stable GPS reception.

  3. GPS L1 Band Optimized
    Precisely tuned to 1.575GHz (±2MHz bandwidth), delivering high accuracy for navigation, tracking, and timing applications.

  4. RoHS Compliance
    Environmentally friendly construction meets global regulatory standards, ensuring safe use in medical and consumer electronics.

  5. 50Ω Impedance & Low VSWR
    Ensures efficient power transfer (VSWR ≤1.5) and compatibility with standard RF systems, minimizing signal loss.


Application scenarios

  • Vehicle Navigation Systems: Provides reliable GPS positioning for fleet management and car navigation.

  • Personal Trackers: Enables real-time location tracking in compact wearables or handheld devices.

  • Medical Equipment: Supports asset tracking in hospitals for devices like portable monitors.

  • Portable IoT Devices: Ideal for drones, pet trackers, or logistics sensors requiring lightweight antennas.


FAQ

Q:What frequency does this antenna support?
A:It operates at 1.575GHz (GPS L1 band) with ±2MHz bandwidth.


Q:Is this antenna waterproof?
A:The product sheet does not specify waterproofing; it’s designed for indoor or protected outdoor use.


Q:Can it work with non-GPS systems?
A:No, it’s optimized exclusively for GPS L1 applications.


Q:What is the gain of this antenna?
A:Typical gain is -1.5dBic, suitable for compact devices with short-range requirements.


Q:Is it compatible with 50Ω systems?
A:Yes, it features a 50Ω output impedance for seamless integration.


Q:Does it comply with RoHS standards?
A:Yes, it’s fully RoHS compliant for environmental safety.
