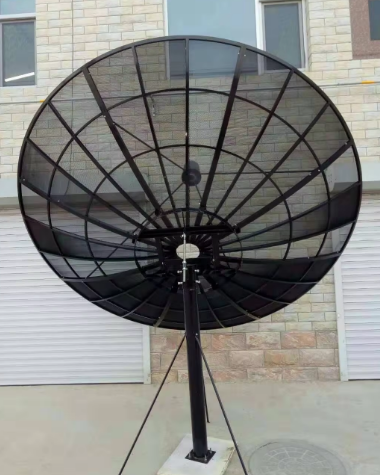

GL-DYS400AM8PM
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Item No | GL-DYS400AM8PM | |
Panel(Sector Divided) | 8 | |
Aperture Diameter | 400CM | |
C-Band Gain@ 4GHz | 43.1dB | |
Ku-Band Gain@ 12.5GHz | ||
F/D Ratio | 0.38 | |
Focus Length | 152CM | |
Material | Aluminium Mesh | |
Finish | Polyester Powder Coating | |
Mounting Type | Pole/Polar Mount | |
Elevation Alignment | 0～90° | |
Azimuth Alignment | 0～360° | |
Operational Winds | Able to receive | 25m/sec |
Able to re-set | 40m/sec | |
Not broken & fly away | 60m/sec | |
Ambient Temperature | -40℃～+60℃ | |
Relative Humidity | 0～100% | |
Product Introduction
Superior C - Band Gain：The GL - DYS400AM8PM provides an outstanding 43.1dB gain in the C - Band at 4GHz. This high gain is a significant advantage, allowing the antenna to capture and strengthen weak C - Band signals with great efficiency. Whether for satellite communication, broadcasting, or other C - Band - based applications, it ensures a stable and reliable signal connection.
Robust Construction：Made of aluminium mesh and finished with polyester powder coating, the antenna is both lightweight and highly durable. Aluminium mesh offers excellent corrosion resistance, and the polyester powder coating protects it from the elements. It can endure strong winds (up to 60m/sec), extreme temperatures (- 40 ℃ to +60 ℃), and high humidity (0 - 100%), ensuring long - term performance.
Flexible Mounting Options：With a pole/polar mount design and adjustable elevation (0 - 90°) and azimuth (0 - 360°) alignment, the GL - DYS400AM8PM offers great flexibility in installation. Users can easily optimize the antenna's position to achieve the best signal reception, adapting to different installation environments and satellite alignment requirements.
Optimal Signal Focusing：The 0.38 F/D ratio and 152CM focal length are carefully engineered to focus signals precisely. This optimal combination enhances the antenna's signal - gathering ability, improving its overall performance and maximizing the utilization of satellite signals.
Wide - ranging Environmental Tolerance：Operating within a wide temperature range and high humidity levels, the GL - DYS400AM8PM can function in diverse environments. It can withstand different weather conditions, making it suitable for use in various regions, from cold and dry areas to hot and humid tropical zones.
Application scenarios
Remote satellite TV/radio stations in rural or mountainous regions.
Military/government secure data transmission networks.
Offshore oil rig communication systems.
Emergency response setups during natural disasters.
FAQ
Q:Does this antenna support Ku-band signals?
A:Ku-band gain isn’t listed; contact us for customized solutions.
Q:What pole size is required for mounting?
A:Compatible with 3-6 inch poles; mounting hardware is included.
Q:Is professional assembly needed?
A:No—modular 8-panel design allows easy on-site assembly.
Q:How to clean the mesh surface?
A:Rinse with water; the polyester coating resists dirt and corrosion.
Q:Is an LNB/feedhorn included?
A:Sold separately; we provide compatible options upon request.
Q:Can it handle heavy snow?
A:Yes, the open mesh structure prevents snow buildup.
Q:Shipping weight and packaging?
A:Approx. 95kg; disassembled panels fit standard shipping containers.
