GL-DY145
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |

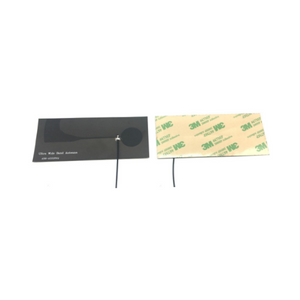

Patch antennas are widely used in various applications, including 4G networks. The key to their success lies in their good performance and reliability. With a 3M sticky backing, these antennas can be easily mounted on any surface, making installation a breeze. The adhesive ensures a secure and long-lasting attachment, even in harsh environmental conditions. Whether it's for indoor or outdoor use, these patch antennas deliver excellent signal strength and coverage. Their compact size and sleek design make them ideal for integration into various devices and systems. With their high efficiency and low interference, these antennas are a perfect choice for 4G applications, providing reliable and fast connectivity.
1 Electrical specifications
Frequency range（MHz） | 700-2700 |
Gain（dBi） | 3 |
Polarization | Vertical |
Impedance (Ω) | 50 |
Max Power (W) | 50 |
VSWR | ≤2.0 |
2 Mechanical specifications
Connector | IPEX |
Dimensions(mm) | 40.4x15.4x0.1 |
Cable | RG1.13/RG1.37 |
Temperature (℃) | -30~60 |
Humidity (%) | 5~95 |
Patch antennas are widely used in various applications, including 4G networks. The key to their success lies in their good performance and reliability. With a 3M sticky backing, these antennas can be easily mounted on any surface, making installation a breeze. The adhesive ensures a secure and long-lasting attachment, even in harsh environmental conditions. Whether it's for indoor or outdoor use, these patch antennas deliver excellent signal strength and coverage. Their compact size and sleek design make them ideal for integration into various devices and systems. With their high efficiency and low interference, these antennas are a perfect choice for 4G applications, providing reliable and fast connectivity.
1 Electrical specifications
Frequency range（MHz） | 700-2700 |
Gain（dBi） | 3 |
Polarization | Vertical |
Impedance (Ω) | 50 |
Max Power (W) | 50 |
VSWR | ≤2.0 |
2 Mechanical specifications
Connector | IPEX |
Dimensions(mm) | 40.4x15.4x0.1 |
Cable | RG1.13/RG1.37 |
Temperature (℃) | -30~60 |
Humidity (%) | 5~95 |
