GL826
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
3G Magnet Antenna | |
GL826 | |
Electrical Index | |
Frequency-MHz | 824-960/1710-2170 |
VSWR | ＜1.5 |
Normal Impedance-Ω | 50 |
Gain-dBi | 5 |
Polarization | Liner |
Mechanical Index | |
Cable Length | RG174,2m |
Connector | SMA male |
Antenna Dimension-mm | φ29.4*230 |
Installation Way | Magnet |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
Multi - band Frequency Support：Operating across the 824 - 960MHz and 1710 - 2170MHz frequency bands, the GL826 is highly adaptable. It can support different 3G network frequencies, ensuring compatibility with a wide range of 3G - enabled devices and service providers. This multi - band functionality allows for seamless communication in various regions and with different network setups.
Good Signal Gain：With a gain of 5 dBi, the antenna effectively boosts the 3G signal strength. A higher gain means better long - range signal reception and transmission capabilities. It helps to overcome signal attenuation, reducing dead zones and ensuring a more stable connection, especially in areas with weak 3G signals.
Low VSWR：The Voltage Standing Wave Ratio (VSWR) of less than 1.5 indicates efficient power transfer. A low VSWR ensures that most of the power transmitted from the device to the antenna is radiated as a signal, rather than being reflected back. This results in improved antenna performance and better - quality 3G communication.
Convenient Magnet Mounting：Featuring a magnetic mounting method, the GL826 can be easily attached to any metal surface. This is extremely convenient for quick installation, whether it's on a vehicle's body, a metal pole, or a router's metal enclosure. It allows for flexible placement to optimize signal reception, and the magnetic base provides a secure hold even in vibrating environments.
Environmentally Friendly and Durable：Compliant with ROHS standards, the antenna is environmentally friendly. It can also operate within a wide temperature range of - 40°C to + 85°C and a humidity range of 5% - 95%. This makes it suitable for use in various harsh environmental conditions, ensuring long - term reliable performance.
Industrial IoT: Connectivity for sensors in agriculture, manufacturing, and logistics.

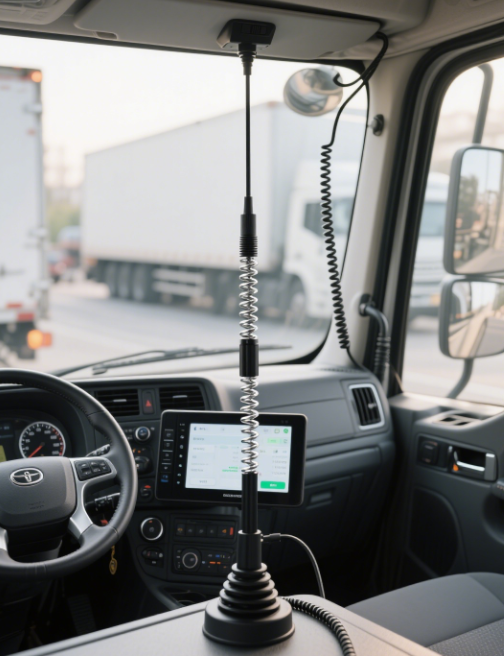

Fleet Management: Reliable 3G communication for trucks and commercial vehicles.
Outdoor Monitoring: Weather-resistant performance for remote security systems.
Mobile Base Stations: Signal enhancement in rural or temporary setups.
Telecom Backup: Auxiliary communication for legacy 3G networks.
Q: How do I install this antenna?
A: Attach it to any metal surface using the built-in magnet and connect the SMA male connector to your device.
Q: Is it compatible with 4G/LTE networks?
A: No, it is optimized for 3G bands. For 4G/LTE, explore our other models.
Q: Can it survive heavy rain or snow?
A: While not fully waterproof, its rugged design ensures durability in extreme weather conditions.
Q: Which industries benefit most from this antenna?
A: Transportation, IoT, telecom, agriculture, and outdoor surveillance.
Q: Is it environmentally certified?
A: Yes, it is ROHS compliant and free of hazardous materials.
Q: What is the warranty period?
A: A 2-year limited warranty covers manufacturing defects.
