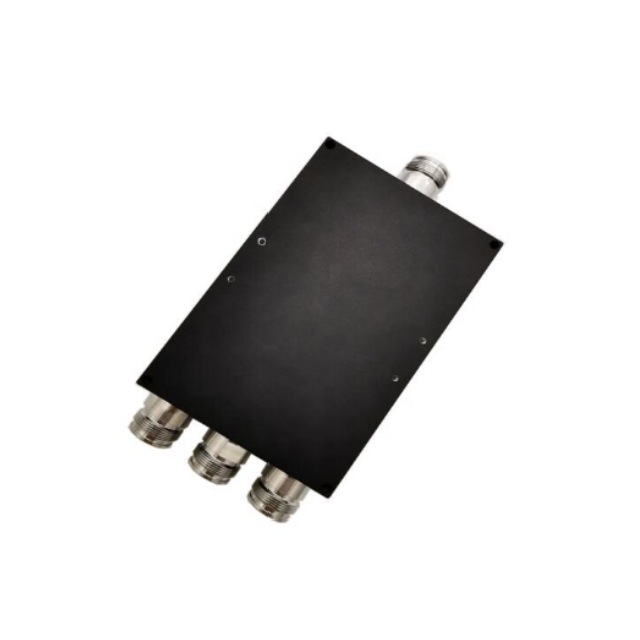

GL-740-3-NF
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Model No. | GL-740-3-NF |
Freq(MHz) | 617-3800MHz |
Split Loss(dB) | 4.8 |
IL(dB) | ≤1.0 |
Isolation(dB) | 18 min |
VSWR | ≤1.3 |
Total Input Power(W) | 50 |
Impedance | 50 ohm |
Connector | N-female |
Color | Black |
Temp(deg) | -30~+70 |
Application | Indoor, IP60 |
Product Introduction
Broad Frequency Coverage：The GL - 740 - 3 - NF power splitter has an extensive frequency range from 617 - 3800MHz. This wide - band capability makes it adaptable to various wireless communication systems, including 2G, 3G, 4G, and LTE networks. It can support different wireless applications, ensuring compatibility across multiple technologies.
Low Insertion Loss：With an insertion loss of ≤1.0 dB, the splitter minimizes the reduction of signal strength during power division. This means that the output signals retain a relatively high power level, enabling stable and reliable connections for devices that depend on these signals.
Low VSWR：The VSWR of ≤1.3 indicates efficient power transfer. Low VSWR reduces signal reflection, which is crucial for maximizing the power delivered to the connected devices. This helps in maintaining the integrity of the signal and enhancing the overall performance of the power - splitting system.
High Isolation：Featuring a minimum isolation of 18 dB between output ports, the GL - 740 - 3 - NF effectively reduces interference between different output signals. This isolation ensures that each connected device receives a clean and independent signal, improving the system's reliability and performance.
Suitability for Indoor Use with IP60 Protection：Designed for indoor applications with an IP60 protection rating, the GL - 740 - 3 - NF is suitable for in - building solutions. It can be used in a variety of indoor environments, and the IP60 rating provides a certain level of protection against dust, making it more durable in indoor settings.
Application scenarios
Office Building Wireless Networks：In large office buildings, the GL - 740 - 3 - NF can split the signal from a wireless access point. By connecting multiple antennas, it extends the wireless coverage area, allowing employees to have a stable network connection for tasks such as video conferencing, file sharing, and cloud - based application access.
Hotel and Resort Wi - Fi Setup：Hotels and resorts can use this power splitter to enhance their Wi - Fi infrastructure. It splits the signal from the main router to multiple access points, ensuring that guests can enjoy seamless internet access on their devices, whether in rooms, public areas, or conference halls.
Residential Wireless Networks：In apartment complexes or large houses, the GL - 740 - 3 - NF can be used to improve the wireless network distribution. It helps in splitting the signal from a central router to different areas of the building, providing better coverage for residents' smart devices, smart home appliances, and gaming consoles.
Retail Store Wireless Systems：Retail stores rely on wireless networks for point - of - sale systems, inventory management, and customer - facing services. The GL - 740 - 3 - NF can split the power of the wireless signal to ensure that all devices in the store have a reliable connection, improving operational efficiency and customer service.
Educational Institution Wireless Networks：Schools and universities can utilize this power splitter to enhance their campus wireless networks. It splits the signal to cover classrooms, libraries, and common areas, enabling students and faculty to access educational resources online, use digital learning platforms, and stay connected.
Healthcare Facility Wireless Communication：In hospitals and clinics, wireless devices are essential for patient monitoring, staff communication, and accessing medical records. The GL - 740 - 3 - NF can split the power of the wireless signal to ensure that these devices have a stable connection, which is crucial for providing quality healthcare services.
Industrial Facility Wireless Monitoring：Industrial facilities often use wireless sensors and devices for equipment monitoring and process control. The GL - 740 - 3 - NF can split the power of the wireless signal to ensure that all these devices receive a strong and stable signal, facilitating real - time monitoring and control of industrial processes.
Event Venue Temporary Wireless Networks：At event venues like conference centers, stadiums, or exhibition halls, temporary wireless networks are set up. The GL - 740 - 3 - NF can be used to split the power of the signal, ensuring that attendees can connect their devices and access the internet during the event.
FAQ
Q:What is the frequency range of the GL - 740 - 3 - NF power splitter?
A:The frequency range of the GL - 740 - 3 - NF power splitter is 617 - 3800MHz.
Q:What is the split loss of the GL - 740 - 3 - NF?
A:The split loss of the GL - 740 - 3 - NF is 4.8 dB.
Q:What is the maximum input power the GL - 740 - 3 - NF can handle?
A:The GL - 740 - 3 - NF can handle a total input power of 50W.
Q:What type of connector does the GL - 740 - 3 - NF have?
A:The GL - 740 - 3 - NF has an N - female connector.
Q:What is the insertion loss of the GL - 740 - 3 - NF?
A:The insertion loss of the GL - 740 - 3 - NF is ≤1.0 dB.
Q:What is the minimum isolation between output ports of the GL - 740 - 3 - NF?
A:The minimum isolation between output ports of the GL - 740 - 3 - NF is 18 dB.
Q:Is the GL - 740 - 3 - NF suitable for outdoor use?
A:The GL - 740 - 3 - NF is mainly designed for indoor use. Although it has an IP60 rating, it may not be fully suitable for outdoor use as it is not optimized for exposure to weather elements, and using it outdoors may lead to performance issues or damage.
Q:What is the VSWR of the GL - 740 - 3 - NF?
A:The VSWR of the GL - 740 - 3 - NF is ≤1.3.
