Product model：GLY900
Applications：
* Point-to-Point, Point-to-Multipoint Applications
Features：Small size, light weight and firm structure.
Electrical Specifications | |
Frequency Range | 806-960MHz |
VSWR | ≤1.5 |
Gain | 14dBi |
Horizontal beam width | 45° |
Vertical beam width | 40° |
Front-to-back ratio | ≥16dB |
Polarization | Vertical |
Input Impedance | 50Ω |
Maximum input power | 50W |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N female |
Installation | Pole-holding |
Dimensions | 1145×190×55mm |
Antenna weight | 0.7kg |
Radiating Element Material | AI |
Operating temperature | -40°C to +70 °C |

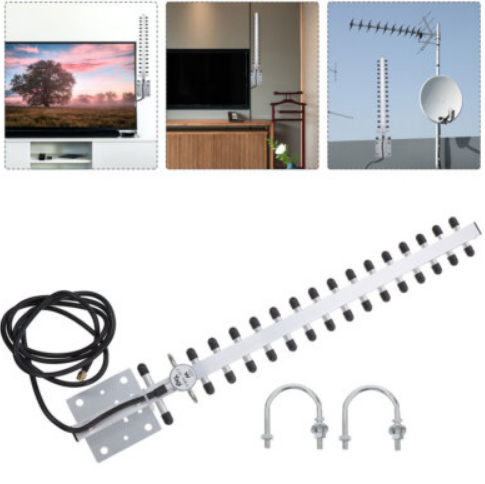

The Yagi antenna, also known as a Yagi-Uda antenna, is a directional antenna that is widely used in various applications for its specific functions. Here are the key functions of a Yagi antenna:
Its all-weather operation makes it suitable for use in any climate, ensuring consistent connectivity even in harsh conditions. Additionally, the antenna comes with mast mounting hardware, making installation a breeze. With its robust features and easy setup, the yagi antenna is a must-have for anyone seeking reliable and efficient signal strength.
