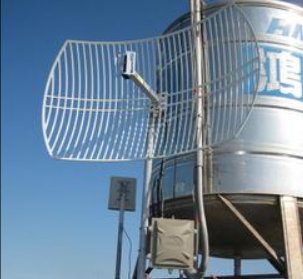

GL-DY2425V17
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |
Frequency Range-MHz | 2400-2500 |
Polarization | Vertical |
VSWR | ≤1.5 |
Gain-dBi | 17 |
Horizontal beam width | 16° |
Vertical beam width | 21° |
Front-to-back ratio-dB | ≥20 |
Input Impedance-Ω | 50 |
Maximum input power-W | 100 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N-K |
Dimensions-m | 0.4×0.3 |
Antenna weight-kg | 1.4 |
Reflector material | Aluminum |
Reflecting surface color | Gray |
Mechanical tilt | 0～20° |
Operating temperature | -40°C to + 65 °C |
Rated Wind Velocity-m/s | 60 |
Mounting hardware - mm | φ35～φ50 |
Product Introduction
●High-Performance 2.4GHz Parabolic Antenna: Elevate your wireless communications with our 0.4m antenna designed for optimal 2.4GHz performance, ensuring reliable connectivity.
●Robust N-Female Connector: Equipped with a durable N-female connector, this antenna guarantees seamless integration into your existing setup, enhancing overall signal quality.
●Vertical Polarization for Superior Signal Quality: The vertical polarization of this parabolic antenna boosts your signal strength and clarity, perfect for maintaining consistent connections.
●Ideal for Point-to-Point Connections: This directional 0.4m antenna is specifically engineered for point-to-point installations, ensuring powerful and efficient long-range communication.
●Versatile Compatibility: Fully compatible with 2.4GHz wireless systems including WLAN, Wi-Fi, point-to-point, and point-to-multipoint configurations for versatile networking solutions.
●Exceptional Gain and Performance:Featuring a high gain of 17dBi and an impressive front-to-back ratio, this antenna significantly enhances your wireless range and minimizes interference.
●Durable and Weather-Resistant Design: Crafted with anti-aging surface coating and aluminum reflector material, our parabolic antenna is built to withstand the elements for long-lasting performance.
FAQ
Q: What is the gain of the 0.4m 2.4GHz Parabolic Antenna, and how does it affect performance?
A: The 0.4m 2.4GHz Parabolic Antenna features a high gain of 17 dBi, which significantly enhances signal strength and reception. A higher gain means that the antenna can effectively focus the energy in a specific direction, resulting in a stronger and more reliable wireless connection. This is particularly beneficial for point-to-point and point-to-multipoint systems where maintaining a strong signal is crucial.
Q: What type of connector does the antenna use, and is it compatible with my equipment?
A: This antenna comes equipped with an N-female connector, making it compatible with a wide range of wireless devices and systems. N-female connectors are known for their durability and performance, ensuring a secure and stable connection. Be sure to check your equipment specifications to confirm compatibility with N-type connectors.
Q: Is this antenna suitable for both indoor and outdoor use?
A: Yes, the 0.4m 2.4GHz Parabolic Antenna is designed for both indoor and outdoor applications. Its anti-aging surface coating and durable aluminum reflector material ensure that it can withstand various environmental conditions. Whether you're setting up a WLAN, Wi-Fi, or other wireless systems, this antenna will provide reliable performance in different settings.
Q: How does vertical polarization benefit my wireless communication?
A: The vertical polarization of the 0.4m 2.4GHz Parabolic Antenna allows for optimal signal propagation in environments where vertical antenna configurations are used. This configuration can reduce interference from other signals and improve overall performance, especially in urban areas where multiple wireless devices operate simultaneously. If your existing systems employ vertical polarization, this antenna will enhance your connectivity.
Q: Can this antenna be used for long-distance wireless communication?
A: Absolutely! The high gain of 17 dBi, combined with its parabolic design, makes the 0.4m 2.4GHz Parabolic Antenna ideal for long-distance wireless communication. It is specifically engineered for point-to-point and point-to-multipoint systems, allowing you to establish strong connections over extended ranges. Perfect for applications like remote monitoring, wireless broadband, and other long-range communications.
Q: How do I install this antenna?
A: Installing the 0.4m 2.4GHz Parabolic Antenna is straightforward. It comes with comprehensive installation instructions and all the necessary mounting hardware. For best results, ensure that you position it in an open area with minimal obstructions to maximize signal range and quality. A proper alignment towards the target device will also enhance performance.
Q: What are the benefits of using a parabolic antenna over a regular antenna?
A: Parabolic antennas, like the 0.4m 2.4GHz model, offer several advantages over regular antennas. The parabolic shape focuses signals more effectively, leading to higher gain and improved front-to-back ratio. This results in reduced interference from unwanted signals and greater directionality, making them ideal for specific applications such as long-distance communications, where precision and strength are crucial.
