GL236S
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Item | Specifications | |
Antenna(2 layers) | Frequency Range | High Band BDS-B1/GPS-L1/GLONASS-G1:1561.098~ 1602MHz Low Band GPS-L5:1176MHz |
Polarization | RHCP | |
Gain | 3dBic@PCB（Zenith） | |
V.S.W.R | ＜1.5 | |
Impedance | 50 Ω | |
LNA | Gain | 28±2dB |
Noise Figure | ≤1.0dB | |
Supply Voltage | 3~5V DC | |
Current Consumption | ＜45mA | |
V.S.W.R | ＜2.0 | |
Mechanical | Cable | RG178 or others |
Connector | IPEX or others | |
Mounting Method | Embedded | |
Environmental | Operating Temperature | -40℃~+85℃ |
Relative Humidity | Up to 95% | |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant | |
Product Introduction
Advanced Dual-Band Technology: The GL236S operates across a high band frequency range of BDS-B1/GPS-L1/GLONASS-G1 (1561.098 ~ 1602 MHz) and a low band at GPS-L5 (1176 MHz), ensuring compatibility with multiple global navigation satellite systems for superior performance.
Precision Engineering for Unmatched Reliability: Designed with cutting-edge technology, this antenna delivers exceptional accuracy even in challenging environments such as densely populated urban areas or remote landscapes, providing you with confidence in your navigation capabilities.

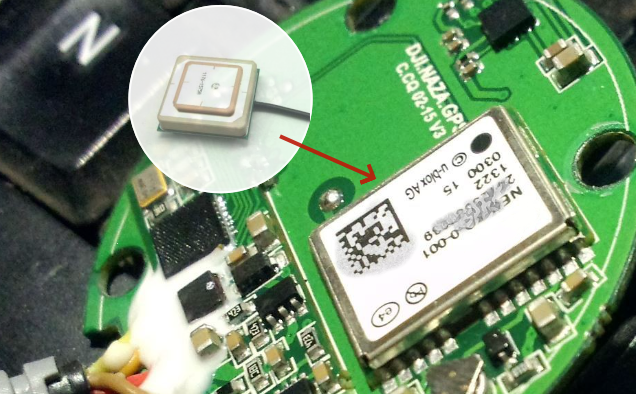

Compact and Easy Installation: The GL236S features an embedded mounting method that simplifies installation without compromising on space or efficiency. Its compact design makes it ideal for a variety of applications, from professional surveying to personal outdoor adventures.
High-Quality Connectivity: Equipped with RG178 cable and IPEX connector, this antenna ensures excellent signal integrity and minimal loss, enhancing overall performance during critical navigation tasks.
Upgrade Your Navigation Experience: Whether you’re a professional in need of precise positioning or an enthusiast exploring new terrains, upgrading to the Dual Band High Accuracy GNSS Active Antenna GL236S will ensure you're always on track—never miss a beat on your journey!
FAQ
Q:Can I get one sample?
A:Yes, sample is available.
Q:What's the delivery time?
A:3-5 working days for the sample, 10-15 working days for quantity below 5K.
Q:What satellite systems does the GL236S antenna support?
A:The GL236S supports multiple satellite systems, including BDS-B1, GPS-L1, GLONASS-G1 in the high band frequency range (1561.098 ~ 1602 MHz) and GPS-L5 in the low band at 1176 MHz.
Q:How do I install the GL236S antenna?
A:The antenna features an embedded mounting method that allows for straightforward installation. Ensure you have adequate space for mounting and follow the provided installation instructions to secure it properly.
Q:What type of cable and connector does this antenna use?
A:The GL236S is equipped with an RG178 cable and an IPEX connector, ensuring reliable connectivity and minimal signal loss during operation.
Q:Can I use this antenna in urban environments?
A:Yes, the advanced technology of the GL236S is designed to maintain high accuracy even in dense urban areas where signal obstruction can occur, providing reliable navigation capabilities.
Q:Is this antenna suitable for outdoor applications?
A: Absolutely! The compact design of the GL236S makes it ideal for various outdoor applications such as surveying, geolocation tracking, or any activity requiring precise positioning in remote locations.
Q:What should I do if I'm experiencing poor signal reception with my GNSS system using this antenna?
A:If you encounter poor signal reception, check that all connections are secure and correctly installed. Ensure there are no significant obstructions nearby that could interfere with signals from satellites. If issues persist, consult our technical support team for further assistance.
