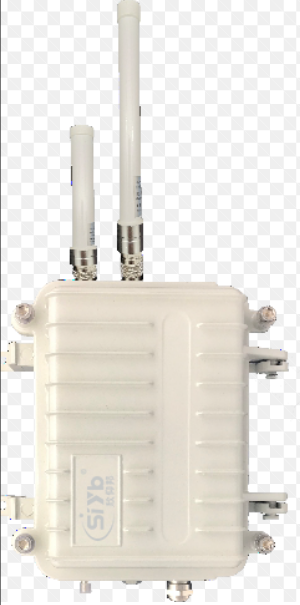

GL-DY868V6
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |
Frequency Range- MHz | 868±5 |
VSWR | ≤1.5 |
Gain- dBi | 6 |
Horizontal beam width | 360° |
Vertical beam width | 30° |
Polarization | Vertical |
Input Impedance-Ω | 50 |
Maximum input power- W | 50 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N-J，2mRG58 Cable |
Connector place | Bottom |
Dimensions- mm | Ф20×820 |
Antenna weight- kg | 0.7 |
Radome material | Fiberglass |
Radome color | gray |
Operating temperature | -40°c～60°c |
Rated Wind Velocity- m/s | 60 |
Mounting hardware- mm | ￠35～￠60 |
Product Introduction
High-Quality Fiberglass Build：Crafted with a high - quality fiberglass radome, the GL-DY868V6 is durable and resistant to environmental factors. Fiberglass offers excellent protection for internal components, making it suitable for long - term use in various conditions, whether it's exposure to sunlight, moisture, or dust.
All - Weather Operation：Capable of operating in a wide temperature range from - 40°C to 60°C and withstanding a rated wind velocity of 60 m/s, this antenna can function reliably in different weather conditions. It ensures continuous operation without being affected by extreme temperatures or strong winds, providing stable performance for 868MHz systems.
Omni - directional Coverage：The 360° horizontal beam width allows for comprehensive horizontal coverage. In point - to - multipoint applications, it can reach multiple devices in all directions, eliminating the need for precise alignment. This feature is crucial for scenarios where the location of receiving devices may vary.
Good Signal Gain：With a 6dBi gain, the GL-DY868V6 effectively boosts the 868MHz signal. This gain helps extend the communication range, reducing signal dropouts and interference. It ensures a more stable connection for devices operating within the 868MHz frequency band.
Standard Impedance and Lightning Protection：Featuring an input impedance of 50Ω, it is compatible with a wide range of devices in the 868MHz system. Additionally, the DC ground lightning protection safeguards the antenna and connected equipment from electrical surges caused by lightning strikes, enhancing its reliability and lifespan.
Application scenarios
Industrial IoT: Monitor sensors and machinery in factories or remote oil fields.
Smart Agriculture: Transmit data from soil sensors and weather stations across vast farmlands.
Urban Infrastructure: Support smart city projects like streetlight control or waste management systems.
Rural Connectivity: Enable long-range communication in areas with limited infrastructure.
LoRaWAN Networks: Deploy as a base station antenna for LPWAN applications.
FAQ
Q: What is the antenna’s radiation pattern?
A: It provides 360° horizontal coverage and 30° vertical beamwidth for wide-area connectivity.
Q: Can it handle high winds?
A: Yes, it’s rated for wind speeds up to 60 m/s and includes sturdy mounting hardware.
Q: Is the cable length customizable?
A: The default cable is 2m RG58 with an N-J connector. Contact us for custom lengths.
Q: Does it work with LoRa devices?
A: Absolutely! It’s optimized for 868MHz systems, including LoRa and LoRaWAN.
Q: How do I install the GL-DY868V6 antenna?
A:The GL-DY868V6 has an N - J connector at the bottom with a 2mRG58 cable. First, select a suitable pole with a diameter between ¢35 - ¢60. Then, use the provided mounting hardware to attach the antenna to the pole. Finally, connect the N - J connector to the relevant device, making sure the connection is secure for optimal signal transmission.
