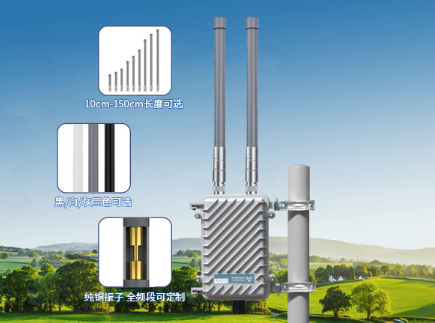

GL-DY2600V11
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |
Frequency Range- MHz | 2500-2700 |
VSWR | ≤1.8 |
Gain- dBi | 11 |
Horizontal beam width | 360° |
Verticalbeam width | 7° |
Polarization | Vertical |
Input Impedance-Ω | 50 |
Maximum input power- W | 50 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N-K |
Connector place | Bottom |
Dimensions- mm | Ф20×915 |
Antenna weight- kg | 1.1 |
Radome material | Fiberglass |
Radome color | gray |
Operating temperature | -40°c～60°c |
Rated Wind Velocity- m/s | 60 |
Mounting hardware- mm | ￠35～￠60 |
Product Introduction
Targeted Frequency Range: Specifically designed for the 2500 - 2700MHz frequency band, it's an excellent fit for 4G - LTE systems and point - to - multipoint applications, ensuring reliable signal transmission.
High Gain: With a gain of 11 dBi, it effectively enhances the signal strength, allowing for better coverage and stable communication over a certain distance.
Omni - directional Coverage: The 360° horizontal beamwidth provides all - around signal distribution, making it suitable for scenarios where signals need to reach in multiple directions without adjustment.
Durable Build: Constructed with high - quality fiberglass radome, it can withstand various weather conditions. It operates within a temperature range of - 40°C to 60°C and can endure a rated wind velocity of 60 m/s.
Lightning Protection: The DC ground lightning protection feature safeguards the antenna and connected devices from electrical surges caused by lightning, ensuring long - term performance and reliability.
4G - LTE Networks: Ideal for enhancing the coverage and performance of 4G - LTE base stations in urban or suburban areas, providing better mobile connectivity to users.
Point - to - Multipoint Communication: In industrial parks or large campuses, it can be used to establish wireless communication links between multiple buildings or facilities for data transfer and monitoring.
Remote Area Connectivity: In rural or remote locations, it helps to extend the reach of 4G - LTE signals, enabling residents and businesses to access high - speed mobile networks.
Outdoor Public Wi - Fi Hotspots: For setting up outdoor Wi - Fi hotspots in parks, beaches, or event venues, ensuring that users can connect to the internet from various directions.
Smart City Infrastructure: Can be integrated into smart city projects for applications like traffic monitoring, environmental sensing, and public safety communication within the 4G - LTE network framework.
Q:What is the maximum input power the GL - DY2600V11 antenna can handle?
A:lThe maximum input power is 50W.
Q:Is it suitable for both indoor and outdoor installation?
A:It is mainly designed for outdoor use due to its weather - resistant features. However, it can potentially be installed indoors in appropriate environments.
Q:How does the omni - directional beamwidth benefit the user?
A:The 360° horizontal beamwidth allows the antenna to cover a wide area around it, eliminating the need to adjust the antenna's direction to communicate with devices in different positions.
Q:What is the significance of the vertical beamwidth of 7°?
A:The 7° vertical beamwidth helps focus the signal in a relatively narrow vertical range, optimizing the signal transmission and reception in relevant scenarios, especially when installed at a certain height.
Q:Can it be used with any 4G - LTE device?
A:It operates in the 2500 - 2700MHz frequency range. As long as the 4G - LTE device is compatible with this frequency, it should work, but it's best to verify compatibility.
Q:How do I install the antenna?
A:It comes with an N - K connector at the bottom and can be mounted on poles with a diameter of 35 - 60 mm. Refer to the installation manual for detailed steps.
Q:How often should I maintain the antenna?
A:Regularly check for any physical damage, especially after extreme weather conditions. Ensure the connector is securely attached and the grounding for lightning protection is in good condition.
