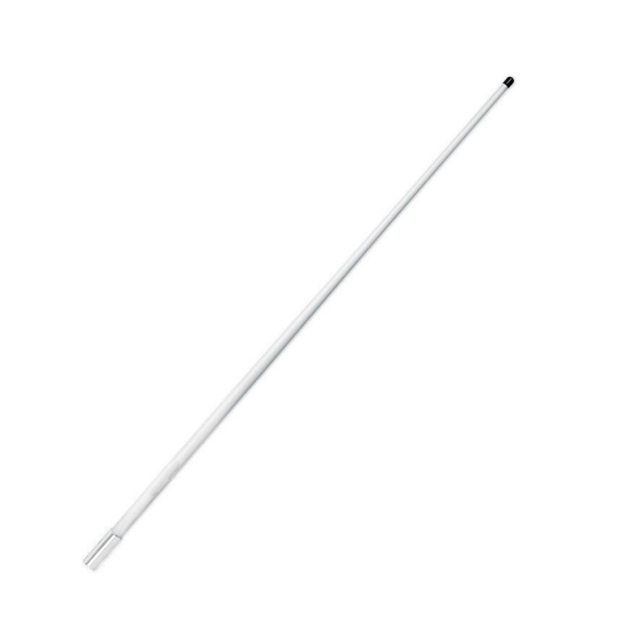

GLF-400A
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Product Specifications
Model | GLF-400A |
Frequency Range- MHz | 433.175-434.665 |
Bandwidth -MHz | 14 |
Gain -dBi | 11 |
Vertical Beamwidth ° | 10° |
Horizontal Beamwidth ° | 360° |
VSWR | ≤1.5 |
Polarization | Vertical |
Max Power- W | 100 |
Nominal Impedance-Ω | 50 |
Connector | N female |
Length-m | 4.7 |
Weight- kg | 5 |
Working Temperature-℃ | -30°~60° |
Rated Wind Velocity- m/s | 60 |
Mounting Mast Diameter -mm | Φ40~50 |

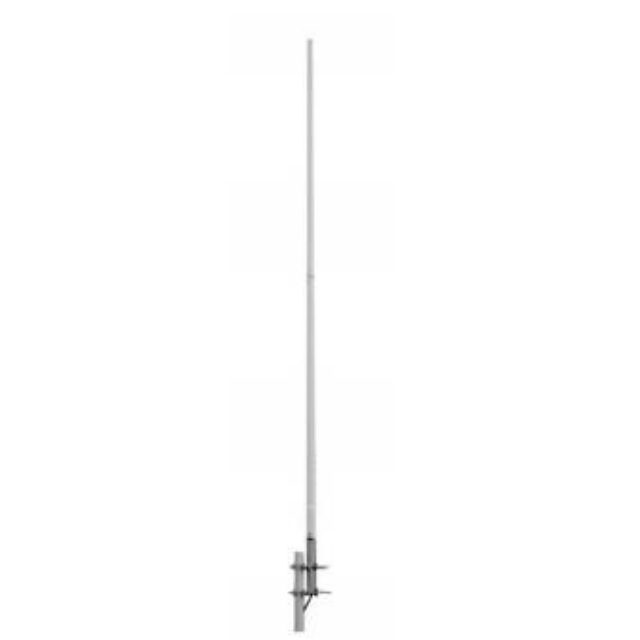

Installation Sketch Map
Product Introduction
●Versatile Applications: Designed for UHF 400MHz Band, ideal for wireless video systems, and point-to-multipoint setups, making it perfect for base station antennas.
●Superior Performance: Experience enhanced signal clarity with our high-gain design offering an impressive 11 dBi gain, ensuring reliable connectivity.
●Robust Construction: Engineered with a high-quality fiberglass tube radome, this antenna is built to withstand various environmental conditions for long-lasting performance.
●Easy Installation: Comes complete with a steel mounting kit and a U-bracket for effortless mast mounting on diameters ranging from Φ40mm to Φ50mm.
●Enhanced Signal Quality: Features a low Voltage Standing Wave Ratio (VSWR) for optimal signal transmission, paired with vertical polarization for efficient broadcast coverage.
●Compact and Lightweight:Measuring 4.7 meters in length and weighing only 5kg, our antenna is both space-efficient and easy to handle during installation.
FAQ
Q: What frequency range does the Fiberglass Antenna support?
A:The Fiberglass Antenna operates within the UHF 400MHz band, making it an ideal choice for applications such as wireless video systems and point-to-multipoint communication.
Q: What type of connector does this antenna use?
A:This antenna is equipped with an N female connector, ensuring compatibility with a wide range of devices and systems for reliable connectivity.
Q: What are the benefits of high gain in the Fiberglass Antenna?
A: The high gain feature of the Fiberglass Antenna enhances signal strength and range, allowing for improved performance in wireless communications and ensuring clear and consistent transmission.
Q: How does the low VSWR benefit the performance of the antenna?
A: Low Voltage Standing Wave Ratio (VSWR) indicates efficient power transfer between the antenna and the connected transmission line. This results in minimal signal loss, optimizing overall performance during operation.
Q: Can you explain the construction materials used in the Fiberglass Antenna?
A:The antenna features a high-quality fiberglass tube radome, which provides durability and resistance to environmental conditions. Additionally, it comes with a strong steel mounting kit to ensure a secure installation.
Q: What is the mounting support for this antenna?
A :The Fiberglass Antenna includes a U bracket for mast mounting, accommodating mast diameters of Φ40 to 50mm. This versatile design makes it easy to install in various environments.
Q: What is the length and weight of the Fiberglass Antenna?
A:This antenna has a length of 4.7 meters and weighs 5 kilograms, making it a robust yet manageable option for your wireless communication needs.
Q: What type of polarization does this antenna provide?
A: The Fiberglass Antenna features vertical polarization, which is commonly used in communication systems to improve signal reception and transmission efficiency.
Q: Is this antenna suitable for outdoor use?
A: Yes, the high-quality fiberglass construction makes this antenna suitable for outdoor use, as it is designed to withstand various weather conditions while maintaining optimal performance.
Q: How do I ensure proper installation of the Fiberglass Antenna?
A:To ensure proper installation, follow the provided instructions for the mounting kit and ensure that the mast diameter aligns with the antenna's specifications. For best results, mount the antenna in an open area free from obstructions to maximize signal coverage.
For the specific parameters and sizes of this product, please click the right email or telephone to consult us.
