GL-DY566
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical specifications | |
Frequency Range(GHz) | 0-3 |
Impedance(ohm) | 50 |
Max power (W) | 50 |
Mechanical specifications | |
Connector | MMCX/UFL |
Length of cable | 1.37cable 120±5mm |
Lighting protection | DC grounding |
Product Introduction

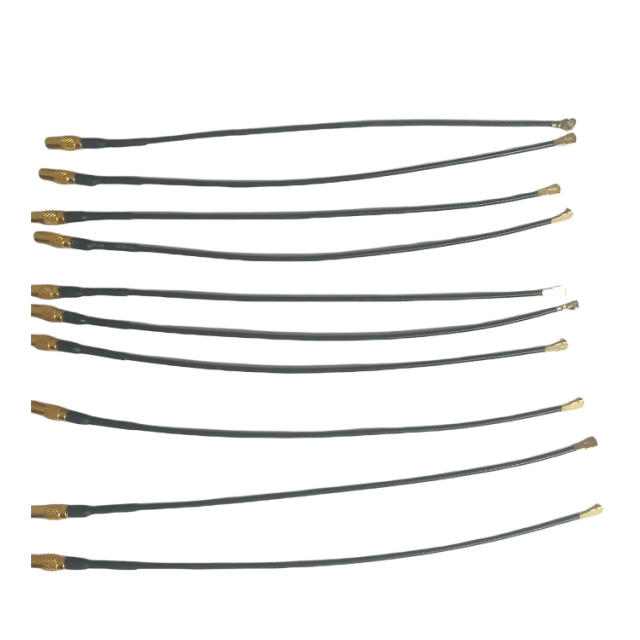

Broad Frequency Range：The GL - DY566 UFL - MMCX - 1.37 cable covers a frequency range of 0 - 3GHz. This wide - band characteristic makes it suitable for various applications that operate within this frequency spectrum, providing flexibility for different wireless communication systems.
Stable Impedance：With an impedance of 50 ohms, the cable ensures efficient power transfer. Stable impedance is crucial for maintaining signal integrity and minimizing signal loss during transmission, which is essential for high - performance communication systems.
High Power Handling Capacity：The cable can handle a maximum power of 50W. This high - power - handling ability makes it suitable for applications that require the transmission of high - power signals, such as in some industrial or high - performance communication setups.
Convenient Connector Type：Featuring UFL and MMCX connectors, the GL - DY566 is compatible with a wide range of devices. These connectors are commonly used in RF and wireless applications, allowing for easy connection and disconnection, and ensuring a reliable connection between different components.
Lightning Protection Design：Equipped with DC grounding for lightning protection, the GL - DY566 offers enhanced safety. This feature helps protect connected devices from potential damage caused by lightning strikes or electrical surges, making it suitable for outdoor or exposed installations.
Application scenarios
Wireless Communication: Connect antennas to routers, modems, or IoT modules.
Test & Measurement: Link RF analyzers, signal generators, or oscilloscopes in labs.
Drone/UAV Systems: Enable reliable signal transmission in compact drone electronics.
Industrial IoT: Integrate sensors and controllers in harsh environments.
Broadcast Equipment: Stabilize connections for radio transmitters or receivers.
FAQ:
Q: Is this cable compatible with 5G devices?
A: Yes, its 0-3 GHz range covers most 5G sub-6 GHz applications.
Q: Can it handle outdoor installations?
A: Yes, DC grounding provides basic protection against static and interference.
Q: What’s the maximum bending radius?
A: Avoid sharp bends; a minimum 10mm radius is recommended for longevity.
Q: Are connectors gold-plated?
A: Yes, connectors feature gold plating for low resistance and corrosion resistance.
Q: Can I customize the cable length?
A: Standard length is 120mm, but bulk orders may allow customization.
Q: Is it suitable for high-temperature environments?
A: Rated for -40°C to +85°C, making it suitable for industrial use.
Q: Does it support PoE (Power over Ethernet)?
A: No, this is an RF coaxial cable, not designed for PoE.
Q: How to ensure impedance matching?
A: The 50Ω impedance aligns with most RF systems; verify device specs before use.
