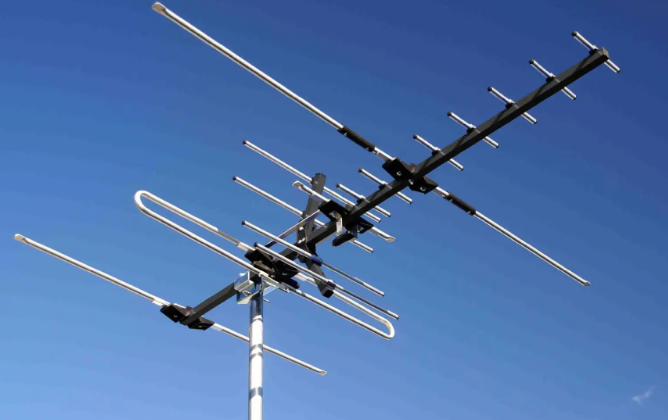

Item | HDTV Outdoor Yagi Antenna |
PN | GL074 |
Frequency Range (MHz) | 470-862 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤1.5 |
Gain (dBi) | 10-12 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Connect Type | F/IEC |
Material | Aluminum and Plastic |
Length-mm | 820 |
Carton Size-mm | 755*300*570 |
Weight | 9.2kg/carton |
Exceptional 10-12dBi High Gain
Captures weak signals up to 50 miles, delivering sharp 1080P HD even in remote or low-coverage areas.
Ultra-Durable Aluminum-Plastic Build
Combines lightweight aluminum with rugged plastic to withstand rain, wind, and temperature extremes (-40°C to 85°C).
Multi-Directional Signal Optimization
Automatically adjusts to multiple broadcast towers, eliminating manual repositioning for hassle-free setup.
Minimal Signal Loss (VSWR ≤1.5)
Ensures stable signal transmission with reduced interference, ideal for storm-prone regions.
Universal F/IEC Compatibility
Works seamlessly with most TVs and amplifiers via F/IEC connectors, offering plug-and-play convenience.
Application scenarios
Rural properties far from broadcast towers.
Storm-prone areas requiring weather-resistant equipment.
Large homes needing extended UHF channel coverage (470-862MHz).
Outdoor installations on rooftops or poles for optimal signal elevation.
FAQ
Q: Is this antenna waterproof?
A: While not fully waterproof, its aluminum-plastic design resists rain and wind when securely mounted.
Q: Does it require a signal amplifier?
A: The high 12dBi gain often eliminates the need, but an amplifier can enhance performance in extreme cases.
Q: Can it be mounted on a roof without professional help?
A: Yes—its lightweight design and standard F/IEC connectors simplify DIY installation (mounting hardware sold separately).
Q: Does it support 4K or ATSC 3.0 broadcasts?
A: It delivers 1080P; 4K compatibility depends on your TV tuner and local broadcast availability.
Q: How heavy is the antenna?
A: The carton weighs 9.2kg, but the antenna itself is lightweight aluminum for easy handling.
Q: What’s the ideal placement for maximum range?
A: Elevate on a rooftop or pole facing broadcast towers, avoiding obstructions like trees or buildings.
Q: Is the cable included?
A: No—this antenna requires a coaxial cable with F/IEC connectors (sold separately).
Q: Can it survive heavy snowfall?
A: Yes, but ensure proper mounting to prevent snow accumulation on the structure.
