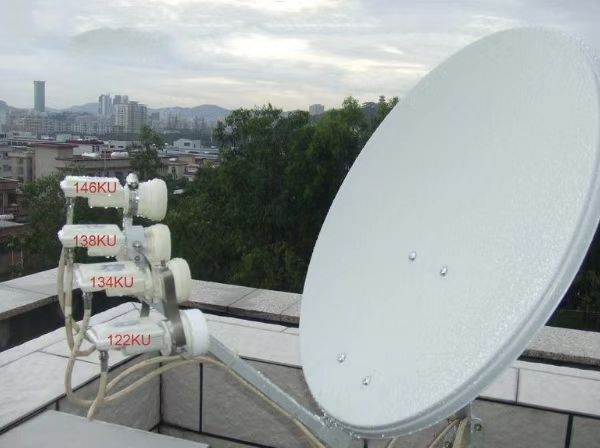

GLKU8090
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
P/N: GLKU8090 |
| |||
1 | Antenna Type | KU 80cm | ||
2 | Antenna color | Green | ||
3 | Frequency range | 10.7～12.75 GHz | ||
4 | Gain | ≥39.15dBi | ||
5 | Reflective size | a=800mm,b=890mm | ||
9 | LNBF Inner Size | Φ40±1 | ||
10 | Pole diameter | Φ38mm | ||
12 | Elevation Angle | 5～85 ° | ||
13 | environment temperature | –50°~70℃ | ||
14 | Environmental humidity | 5～95% | ||
15 | azimuth | 0～360 ° | ||
16 | Scale Indication | 10°~90° | ||
17 | Installation Method | pole stand | ||
19 | Surface treatment of fasteners | Blue and white zinc plating | ||
20 | Plating zinc fasteners salt spray test | ≥200h | ||
21 | All materials | galvanize steel | ||
22 | Feedhorn supporter | 20×20 Square welded | ||
No | Content | Spec | Pic. | |
1 | Reflector | |||
Steel Thickness | 0.6mm | |||
Parameter | a=800mm,890mm | |||
QTY | 1 | |||
Weight Kgs | 3kg | |||
2 | Back bracket |
| ||
Steel Thickness | 2mm | |||
Dimensions | 230*232*80 | |||
Material | galvanize steel | |||
Weight Kgs | 0.3kg | |||
3 | Pipe clamp |
| ||
Steel Thickness | 1.8mm | |||
Material | galvanize steel | |||
Weight Kgs | ||||
4 | Pipe clamp | |||
Steel Thickness | 2mm | |||
Weight Kgs | 0. 11kg | |||
5 | Bottom |
| ||
Weight Kgs | 0. 14kg | |||
Pole Installing Hole | 2-φ8mm | |||
Bottom Installing Hole | 2-φ8mm | |||
6 | Feedhorn supporter |
| ||
Steel Thickness | 1mm | |||
Material | galvanize steel | |||
Back bracket Installing Hole |
2-Φ7 | |||
QTY | 1 | |||
Weight Kgs | 0.57kg | |||
Pole |
| |||
Pole thickness | 1.2mm | |||
7 | Outer Diameter | Φ38mm |  |
|
| ||
QTY | 1 | ||
Weight Kgs | 0.95kg |
8 | Post the strut |
| |
Steel Thickness | 0.6mm | ||
Weight Kgs | 0. 15kg | ||
9 | LNB supporter | ||
Inner Dimension Dia for LNB | Φ40mm |
| |
Square Hole Size | 6.5×6.5mm | ||
Material | ABS(black) | ||
QTY | 1 | ||
Weight Kgs. including Nut | 0.32kg | ||
Mini order 20’CONT | 4000PCS | ||
Mini order 40’CONT | |||
Packing Details | Dishes packed in bulk,parts 10 sets in a carton | ||
Price （FOB) | |||
Product Introduction
High - Gain Performance：The GLKU8090 offers a gain of at least 39.15dBi in the 10.7 - 12.75 GHz Ku - Band. This high gain enables it to effectively capture and strengthen weak Ku - Band signals, ensuring a stable and reliable connection for various applications, such as satellite TV reception and point - to - point communication within the Ku - Band spectrum.
Durable Material：Constructed with galvanized steel for most components and an ABS LNB supporter, the antenna is highly durable. Galvanized steel provides excellent corrosion resistance, which is crucial for outdoor use. The ABS LNB supporter is lightweight and resistant to environmental factors, ensuring the longevity of the antenna.
Flexible Installation：Featuring a pole - stand installation method with adjustable elevation (5 - 85°) and azimuth (0 - 360°), the GLKU8090 provides great flexibility. Users can easily optimize the antenna's position to achieve the best signal reception, whether it's for aligning with a specific satellite or covering a particular area.
Wide Temperature and Humidity Tolerance：Operating within a temperature range of - 50° to 70℃ and an environmental humidity of 5 - 95%, the GLKU8090 can function in diverse environments. This wide - ranging tolerance makes it suitable for use in different climates, from extremely cold regions to hot and humid areas.
Quality Fasteners and Surface Treatment：The fasteners of the GLKU8090 are blue and white zinc - plated, and the plating zinc fasteners have a salt - spray test of at least 200h. This ensures that the fasteners are resistant to corrosion, which in turn helps to keep the antenna structure stable over time.
Application scenarios
Home Satellite TV: Ideal for stable TV signal reception in suburban or rural areas.
Remote Communication: Reliable for emergency communication setups in harsh environments.
Commercial Hubs: Suitable for hotels, offices, or broadcast stations requiring uninterrupted KU-band signals.
FAQ
Q:What pole size is compatible?
A:Designed for Φ38mm diameter poles with pre-drilled mounting holes.
Q:Does it include an LNBF?
A:No, but it supports standard KU-band LNBFs (inner size Φ40±1mm).
Q:Is assembly difficult?
A:No—pre-welded brackets and clear elevation/azimuth scales simplify installation.
Q:Can it withstand heavy rain/snow?
A:Yes, galvanized steel and ABS components resist corrosion and moisture.
Q:What’s the reflector material?
A:0.6mm thick galvanized steel for durability and signal efficiency.
Q:Is the antenna adjustable?
A:Yes, elevation (5°–85°) and azimuth (0°–360°) allow precise alignment.
