GL-DY7040VH7
Asialeren
8517710000
Dual-Polarized Broadband Wall Mount Antenna GL-DY7040VH7.pdf
| Quantity: | |
|---|---|
| PDF Export | |
Product name：Wall Mount Antenna
Product model：GL-DY7040VH7
Applications：
Indoor distributed antenna system
Features：
Light weight, small size
Electrical Specifications | |||
Frequency Range- MHz | 698-960 | 1710-2700 | 3400-4000 |
Polarization | V＋H | ||
VSWR | ≤2.0 | ≤2.0 | ≤2.0 |
Gain- dBi | 6 | 7 | 8 |
Horizontal beam width | 90°- 80° | 80°- 70° | 65°- 60° |
Verticalbeam width | 80°- 70° | 65°- 60° | 55°- 50° |
Front-to-back ratio- dB | ≥10 | ≥13 | ≥15 |
Isolation between ports- dB | ≥23 | ||
Intermodulation IM3(2x33dBm)- dBc | ≤-140 | ||
Input Impedance-Ω | 50 | ||
Maximum input power- W | 50 | ||
Lightning protection | DC Ground | ||
Mechanical Specifications | |||
Input connector type | 2×N-K | ||
Installation | Mounting on the wall | ||
Dimensions- mm | 400×180×62 | ||
Antenna weight-KGS | 1.5 | ||
Radiating Element Material | AI | ||
Radome material | ABS | ||
Radome color | White | ||
Operating temperature | -40°C to +65 °C | ||
Panel antenna is a type of mobile communication system antenna, mainly used for outdoor signal coverage. Whether it is GSM or CDMA, plate antenna is the most commonly used and extremely important type of base station antenna. Its advantages are: high gain, good sector area radiation pattern, small back lobe, convenient control of vertical plane radiation pattern depression angle, reliable sealing performance and long service life.

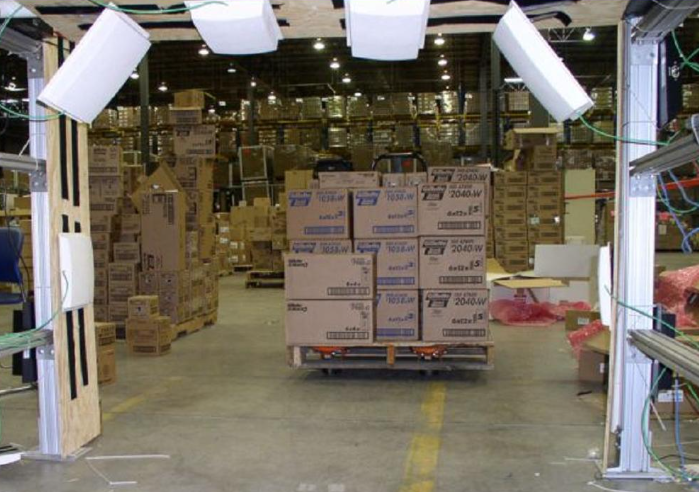

This antenna supports wall mounting or outdoor pole mounting, providing flexibility for users to optimize signal reception and coverage in various environments, whether urban or rural.
