GL-DYE058
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Index | |||

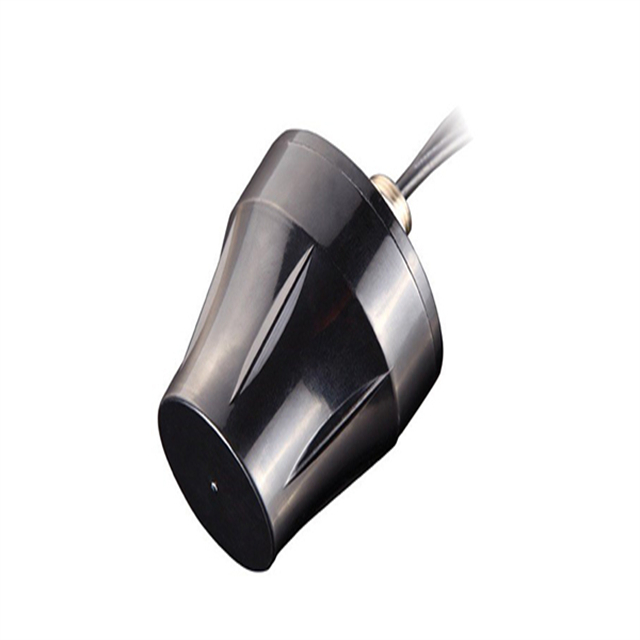

Product Name | GPS+LTE+WIFI Antenna | ||
Product Number | GL-DYE058 | ||
Frequency Range-MHz | 1575.42-1610 | 806-960/1710-2690 | 2400-2483.5 |
Band Width-MHz | 35 | 154/980 | 83.5 |
V.S.W.R | ≤1.5 | ≤2.0 | |
Gain-dBi | 2.0dBic(Zenith) | 2.0 | 3.0 |
LNA Gain-dBi | 28±2 | -- | -- |
Polarization | RHCP | Linear | Linear |
Supply Voltage | 2.2-5V DC | ||
Current Consumption | 5-15mA | ||
Input Impedance-Ω | 50 | ||
Mechanical Index | |||
Connector | SMA male | ||
Antenna Dimension-mm | 50×48 | ||
Installation way | Screw | ||
Ingress Protection | IP65-IP67(exclude cable outlet) | ||
Vibration | 10 to 55MHz with 1.5mm amplitude 2 hours | ||
Relative Humidity | Up to 95% | ||
Environmentally Friendly | ROHS Compliant | ||
Temperature-℃ | -40-+85 | ||
Product Introduction
●All-in-One Connectivity Solution: The GL-DYE058 is a versatile combo antenna that integrates GPS, LTE, and WiFi capabilities into one efficient device, ensuring seamless connectivity across various applications.
●Reliable Performance Across Networks: Designed to deliver consistent signal reception for GPS navigation, LTE data transmission, and WiFi connections, this antenna excels in providing stable performance whether you're on the move or stationary.
●Durable and Compact Design: With its robust construction and compact dimensions (50x48 mm), the GL-DYE058 is built to withstand diverse environmental conditions while remaining unobtrusive in any setup.
● Convenient Installation Options: Featuring an SMA Male connector and a 3-meter cable for flexible positioning, along with screw mounting installation for secure attachment, this antenna ensures straightforward integration into your system.
●Weather-Resistant Protection: Rated IP65-IP67 for ingress protection, the GL-DYE058 is designed to function effectively in challenging outdoor environments without compromising on durability or performance.
FAQ
Q:Can I get one sample?
A:Yes, sample is available.
Q:What's the delivery time?
A:3-5 working days for the sample, 10-15 working days for quantity below 5K.
Q: What is the purpose of the combo antenna GL-DYE058?
A: The combo antenna GL-DYE058 is designed to provide reliable connectivity for GPS, LTE, and WiFi networks in outdoor applications. It enables seamless data transmission and location tracking, making it ideal for various uses including vehicles, IoT devices, and other remote applications where strong, multifunctional connectivity is essential.
Q2: Can you tell me about the installation process of this antenna?
A:Installing the combo antenna GL-DYE058 is straightforward. It features a screw mounting installation method, allowing for secure attachment to various surfaces. The provided 3-meter cable gives you flexibility in positioning, ensuring optimal signal reception. The antenna is IP65-IP67 rated for ingress protection, which means it is built to withstand harsh outdoor conditions.
Q3: What are the dimensions of the antenna?
A: The dimensions of the combo antenna GL-DYE058 are 50mm x 48mm. This compact size allows it to be easily integrated into tight spaces without compromising on performance.
Q: What type of connector does this antenna use?
A: This antenna uses an SMA male connector, ensuring compatibility with a wide range of devices and systems that operate with SMA connectors. This versatile design makes it easy to integrate into your existing setup.
Q: Is the antenna suitable for outdoor use?
A: Yes, the combo antenna GL-DYE058 is specifically designed for outdoor use. With an IP65-IP67 ingress protection rating, it is highly resistant to dust and water, allowing it to operate effectively in varying weather conditions.
Q: What types of devices can this antenna connect to?
A: This combo antenna is versatile and can connect to various devices such as GPS receivers, LTE modems, and WiFi routers. It's an excellent choice for applications in vehicles, drones, and industrial monitoring systems.
Q: Does the antenna come with any mounting equipment?
A: While the antenna includes the necessary cable for easy connectivity, specific mounting hardware may vary. We recommend checking if mounting screws or brackets are supplied with your purchase or if you'll need to obtain them separately for your specific installation.
For the specific parameters and sizes of this product, please click the right email or telephone to consult us.
