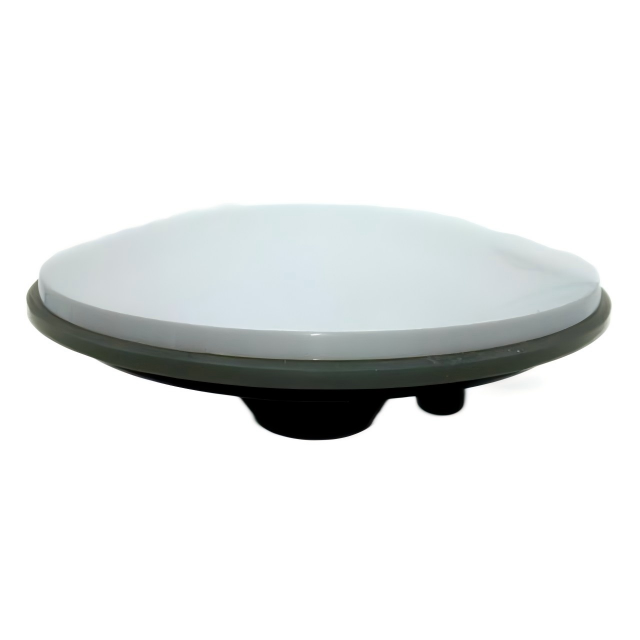

GNSS Surveying Antenna GLA228I
Item | Specifications | |
Antenna | Frequency | GPS L1/L2/L5 GLONASS G1/G2/G3 COMPASS B1/B2/B3 Galileo E1/L1/E2/E5a/E5b/E6 |
Polarization | RHCP | |
Axial Ratio | ≤3dB | |
V.S.W.R | ≤1.5 | |
Peak Gain | ≥5dBi | |
Impedance | 50Ω | |
Phase Center Error | ±2mm | |
Horizontal coverage angle | 360° | |
LNA | Gain | 40±2dB |
Noise Figure | 2.0dB | |
Passband fluctuation | ±2.0dB | |
Supply Voltage | 3~ 12V DC | |
Current Consumption | ≤50mA | |
V.S.W.R | ≤2.0 | |
Mechanical | Connector | TNC female |
Radome Material | ASA | |
Mounting Method | Screw | |
Environmental | Operating Temperature | -40℃~+85℃ |
Relative Humidity | Up to 95% | |
Ingress Protection | IP67 (exclude Air vent in screw hole) | |
Environmentally Friendly | ROHS Compliant | |
Product Introduction
●Comprehensive Frequency Support: Enjoy unparalleled connectivity with support for multiple GNSS frequencies, including GPS L1/L2/L5, GLONASS G1/G2/G3, COMPASS B1/B2/B3, and Galileo E1/L1/E2/E5a/E5b/E6.
●Outstanding Gain and Durability: With a remarkable 40dBi gain, this GNSS Surveying Antenna ensures optimal signal reception even in challenging environments, making it perfect for precise measurement applications.
●Reliable Connection Options: Equipped with a TNC female connector and RG178 cable, this antenna offers robust and secure connections for superior performance.
●Versatile Mounting Options: Designed with screw mounting methods for easy installation, this antenna can be securely attached in various locations, ensuring stability and reliability.
●Built to Endure: Constructed from durable ASA radome material and featuring IP67 ingress protection, this antenna is weather-resistant and can withstand harsh conditions, making it ideal for outdoor surveying applications.
●Revolutionary Technology: The combination of GNSS Surveying and LTE MIMO technology enhances efficiency and accuracy, setting a new industry standard for professionals seeking dependable and precise data collection.
●Your Go-To Tool for Precision: The GLA228I antenna is an indispensable asset for surveyors, providing exceptional performance that they can trust, no matter the environment.
FAQ
Q:Can I get one sample?
A:Yes, sample is available.
Q:What's the delivery time?
A:3-5 working days for the sample, 10-15 working days for quantity below 5K.
Q: What GNSS signals does this antenna support?
A: The GNSS Surveying Antenna is designed to support a wide range of signals including GPS L1/L2/L5, GLONASS G1/G2/G3, COMPASS B1/B2/B3, and Galileo E1/L1/E2/E5a/E5b/E6. This extensive compatibility ensures that you can utilize various satellite systems for precise navigation and surveying needs.
Q: What is the gain of the GNSS Surveying Antenna?
A:This antenna features a high gain of 40 dBi, which significantly enhances its ability to receive satellite signals. The increased gain leads to improved accuracy and reliability in your GNSS applications, making it an excellent choice for professionals requiring precise measurements.
Q: What type of connector does this antenna have?
A: The GNSS Surveying Antenna comes equipped with a TNC female connector. This type of connector is widely used in surveying and geolocation applications, providing a secure and stable connection to your equipment.
Q: Is the antenna designed for outdoor use?
A: Yes, the antenna is built to withstand outdoor conditions with an IP67 ingress protection rating. This means it is dust-tight and can withstand temporary immersion in water, making it suitable for various environments in field surveying.
Q: What type of cable comes with the GNSS Surveying Antenna?
A: The antenna includes an RG178 cable, which is known for its low loss properties and high flexibility. This makes it ideal for connecting to your GNSS receivers while maintaining signal integrity.
Q: How is the antenna mounted?
A: The GNSS Surveying Antenna utilizes a screw mounting method. This robust mounting option ensures that the antenna remains securely in place during operation, providing stability for the best signal reception.
Q: What materials are used in the construction of this antenna?**
A:The antenna is constructed with an ASA radome material, known for its durability and resistance to harsh weather conditions. This ensures long-lasting performance and protection for the internal components of the antenna.
