GLY2427V16
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |
Frequency Range | 2400-2700MHz |
VSWR | ≤1.5 |
Gain | 16dBi |
Horizontal beam width | 30° |
Vertical beam width | 30° |
Front-to-back ratio | ≥17dB |
Polarization | V / H |
Input Impedance | 50Ω |
Maximum input power | 100W |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N-K |
Installation | Pole-holding |
Dimensions | 650×45×80mm |
Antenna weight | 0.3kg |
Radiating Element Material | AI |
Operating temperature | -40°C to +70 °C |
Product Introduction

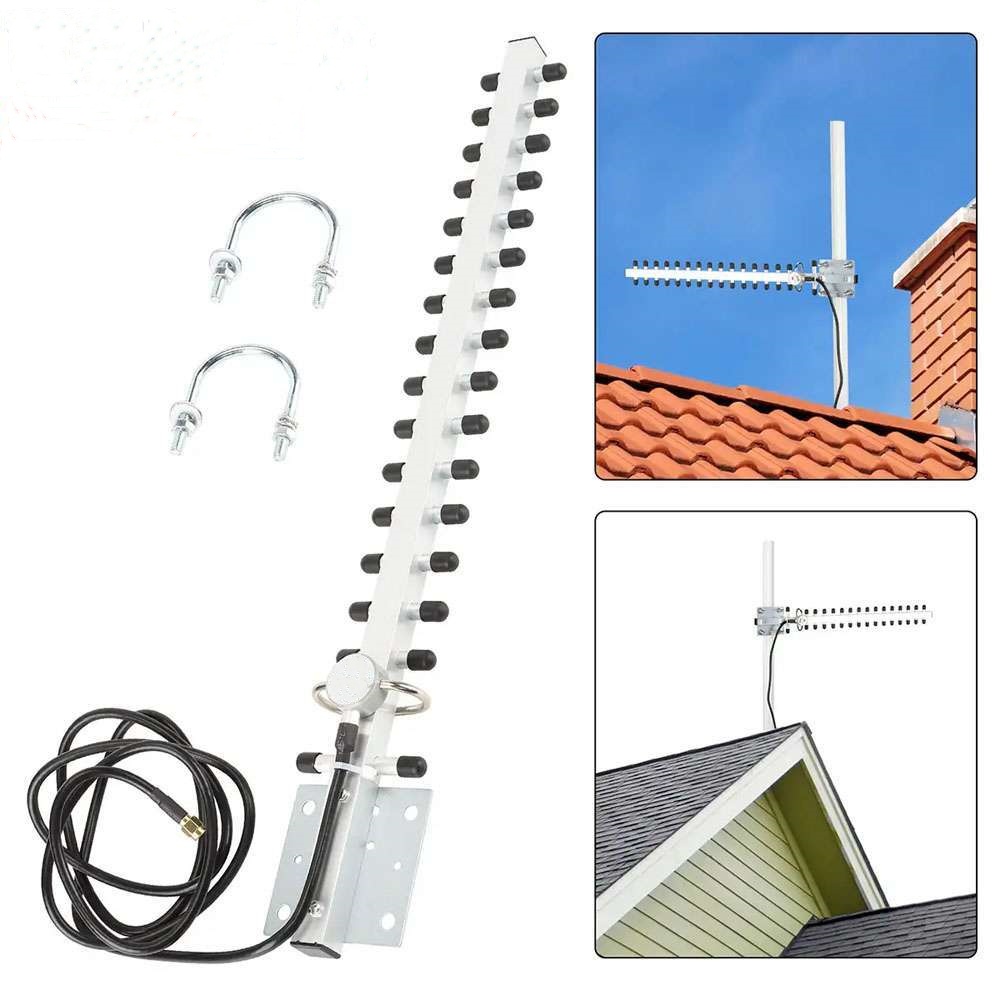

High Gain: With a gain of 16dB, this 2.4GHz Yagi antenna effectively boosts signal strength, enabling stable and long - range connections for WLAN/WIFI systems.
Compact & Lightweight: Weighing only 0.3kg and with dimensions of 650x45x80mm, it's easy to handle and install, saving space and reducing transportation costs.
Dual Polarization: Supporting both vertical (V) and horizontal (H) polarization, it offers flexibility in different signal environments and can enhance signal reception and transmission.
Narrow Beamwidth: The horizontal and vertical beamwidths are both 30°, which focuses the signal in a specific direction, minimizing interference and improving signal quality.
Durable Build: Made with an aluminum radiating element, it's resistant to corrosion and can operate in temperatures from - 40°C to + 70°C. Plus, DC ground lightning protection adds to its reliability.
Home Networks: Ideal for extending the range of home WIFI, especially in large houses or multi - story buildings where the signal may weaken.
Outdoor Hotspots: Can be used to set up outdoor WLAN hotspots in cafes, parks, or small - scale events to provide reliable wireless access.
Industrial Monitoring: In industrial settings, for wireless communication between sensors and monitoring systems in areas like factories or warehouses.
Point - to - Point Links: Connecting two separate locations, such as different buildings on a campus or in a business park, for high - speed data transfer.
Point - to - Multipoint Applications: Transmitting signals from a central location to multiple receivers, like in a small - scale wireless network for a community or a group of remote devices.
Q:What is the maximum input power the antenna can handle?
A:The maximum input power is 100W.
Q:Is it suitable for outdoor use?
A:Yes, with its durable aluminum construction and ability to withstand a wide temperature range, it's suitable for outdoor installations.
Q:How do I install the antenna?
A:It's designed for pole - holding installation. Use the appropriate mounting equipment and follow the installation guide for proper setup.
Q:Can it work with any WIFI router?
A:It operates in the 2.4GHz frequency range, which is common for most WIFI routers. But it's best to check your router's specifications for optimal compatibility.
Q:What's the advantage of dual polarization?
A:Dual polarization allows the antenna to receive and transmit signals more effectively in different signal orientations, improving overall communication quality.
Q:How does the lightning protection work?
A:The DC ground lightning protection helps to divert electrical surges caused by lightning, protecting the antenna and connected devices from damage.
Q:What's the lifespan of the antenna?
A:With proper installation and in normal operating conditions, the antenna can last for a long time. However, extreme environmental factors may affect its lifespan.
