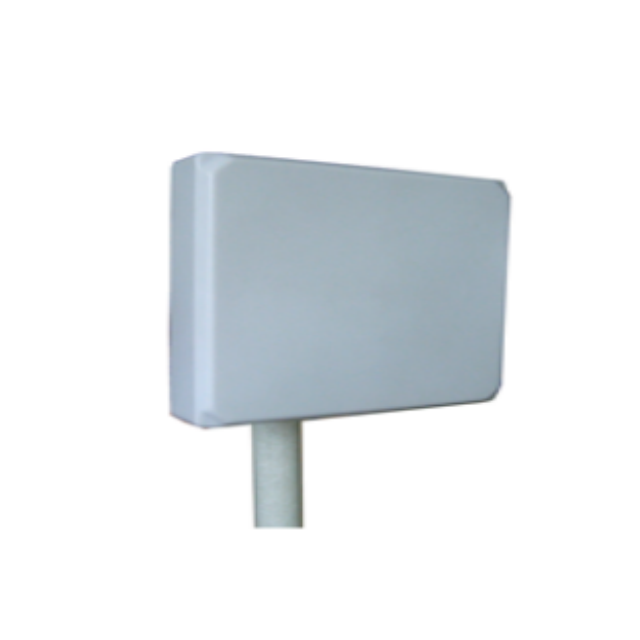

GL2458VH604NF
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |
Frequency Range | 2400-2500/4900-6000MHz |
Polarization | Horizontal+Vertical |
VSWR | ≤2.0 |
Gain | 8dBi |
Horizontal beam width | 60° |
Vertical beam width | 60° |
F/B Ratio | ≥20dB |
Input Impedance | 50Ω |
Max power | 50W |
Lightning protection | DC Ground |
Mechanical Specifications | |
connector type | 4*NF |
Connector location | Back |
Installation | Pole installation |
Dimensions | 190×190×40mm |
Antenna weight | 1.0kg |
Radome material | ABS |
Radome color | white |
Operating temperature | -40°C to +65 °C |
Rated Wind Velocity | 60 m/s |
Pole diameter | ￠35～￠60mm |
Product Introduction
Dual - Band Coverage：The GL2458VH604NF antenna covers the 2400 - 2500MHz and 4900 - 6000MHz frequency ranges. This dual - band design makes it suitable for a wide range of applications, such as Wi - Fi 2.4GHz and 5GHz networks, as well as other wireless communication systems operating within these bands.
Combined Polarization：With horizontal + vertical polarization, the antenna can capture and transmit signals from different orientations more effectively. This polarization method helps to improve signal reception and transmission in complex environments, reducing signal interference.
Good Gain and Radiation Pattern：Featuring an 8dBi gain and 60° horizontal and vertical beam widths, the antenna can effectively strengthen signals and provide a relatively wide - angle coverage. This is beneficial for applications that require a broader signal spread, ensuring better connectivity in the targeted area.
Low VSWR and High F/B Ratio：The VSWR ≤2.0 indicates good impedance matching, which reduces signal reflection and improves signal transmission efficiency. The F/B Ratio ≥20dB means that the forward - to - backward radiation ratio is high, minimizing interference from the rear side of the antenna and enhancing the signal quality in the desired direction.
Durable and Easy to Install：Made of ABS radome material, the antenna is durable and can withstand various environmental conditions. It has a rated wind velocity of 60 m/s and can operate in a temperature range of - 40°C to +65°C. The 4*NF connectors at the back and pole installation method make it easy to install, and it can be mounted on poles with a diameter of ¢35 - ¢60 mm.
Application scenarios
Smart City Networks: Reliable connectivity for traffic cameras, public WiFi, or emergency systems.
Warehouse Automation: Stable signal distribution across large storage facilities.
Outdoor Venues: High-speed coverage for stadiums, parks, or event spaces.
Industrial IoT: Robust data transmission in factories, ports, or energy plants.
FAQ
Q:Does this antenna support WiFi 6E?
A:Yes, the 4900–6000MHz band covers WiFi 6E’s 6GHz spectrum for future-proof performance.
Q:Can it handle multiple devices simultaneously?
A:The 4x N-F connectors allow parallel connections to routers, repeaters, or IoT hubs.
Q:Is it waterproof?
A:The ABS radome is weather-resistant, rated for rain, snow, and UV exposure.
Q:What’s the maximum coverage distance?
A:Achieves up to 800m in open areas, depending on terrain and equipment.
Q:Does it require a ground wire?
A:Yes, DC grounding is mandatory for lightning surge protection.
Q:Is it compatible with PoE systems?
A:Yes, but ensure PoE injectors match the 50Ω impedance and power requirements.
Q:Can it be wall-mounted?
A:Designed for pole installation, but wall brackets can be used with adapters.
