GL-DY024
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Product Specifications
Item | Specifications | |
Antenna | Frequency Range | 698~960/1710~2700MHz |
Polarization | Linear | |
Gain | 2dBi | |
V.S.W.R | ＜2.0 | |
Impedance | 50Ω | |
PCB Dimension | 126*15.5*8.6mm | |
Mechanical | Cable | RG174 or LMR100 |
Connector | SMA/FAKRA or others | |
Radome Material | ABS | |
Mounting Method | Adhesive | |
Environmental | Operating Temperature | -40℃~+85℃ |
Relative Humidity | Up to 95% | |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant | |
Product Introduction

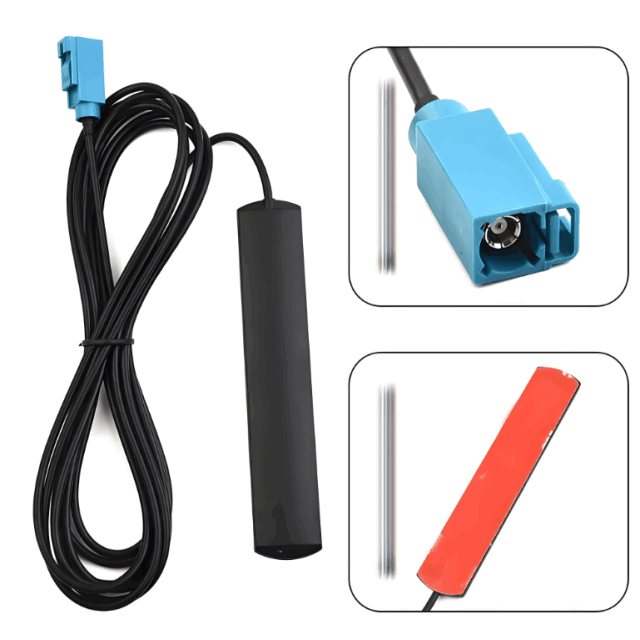

●Versatile Adhesive Mounting: Easily install the 3G Patch Antenna using the robust 3M adhesive backing for secure placement on various surfaces.
●Streamlined Patch Design: The compact patch antenna measures just 126mm x 15.5mm x 8.6mm, making it ideal for discreet installations without compromising performance.
●Reliable SMA Connector: Equipped with a durable SMA connector, this antenna is perfect for all your 3G application needs, providing reliable connectivity.
●Flexible Cable Options: Connect with RG174 or LMR100 cables to ensure optimal signal transmission for your mobile communication systems.
●Enhanced Signal Strength: Achieve a 2dBi gain for improved performance in wireless networks, ensuring strong connectivity for your devices.
●Durable ABS Radome Material: Constructed from high-quality ABS material, this antenna is built to withstand various environmental conditions.
●Vibration Endurance: Designed for resilience, the antenna can endure vibrations of 10 to 55Hz with a 1.5mm amplitude for up to 2 hours without performance degradation.
●Eco-Friendly Compliance: Our 3G patch antenna is ROHS compliant, ensuring it meets environmentally friendly standards for safe usage.
FAQ
Q:Can I get one sample?
A:Yes, sample is available.
Q:What's the delivery time?
A:3-5 working days for the sample, 10-15 working days for quantity below 5K.
Q: What applications is the GL-DY024 3G Patch Antenna suitable for?
A: The GL-DY024 3G Patch Antenna is designed specifically for mobile communication applications, ensuring strong connectivity in environments that require reliable 3G network access. Its adhesive mounting option makes it ideal for various setups, including vehicle installations and fixed wireless applications.
Q:How does the antenna perform in terms of gain?
A: This antenna provides a gain of 2dBi, which enhances its ability to receive and transmit signals effectively. This level of gain ensures better reception and transmission of signals, contributing to improved network performance for your devices.
Q: Can I use this antenna outdoors?
A:Yes, the GL-DY024 3G Patch Antenna is designed with a durable ABS radome material, making it suitable for outdoor use. Its robust construction is made to withstand varying environmental conditions, ensuring that your connectivity remains stable even in the elements.
Q: What are the dimensions of the antenna?
A: The antenna has a compact PCB dimension of 126mm x 15.5mm x 8.6mm. This small size makes it easy to integrate into your devices without taking up much space, while still providing effective signal performance.
Q: Is the GL-DY024 antenna compliant with environmental standards?
A:Yes, the GL-DY024 antenna is RoHS compliant, meaning it meets strict environmental standards and is free from hazardous substances. Choosing this antenna not only benefits your communication needs but also aligns with eco-friendly practices.
Q: What type of cable is compatible with this antenna?**
A:The GL-DY024 antenna can be used with either RG174 or LMR100 cables. This versatility allows you to select the cable type that best suits your installation needs, ensuring optimal signal quality.
Q: What’s the recommended operating frequency range for this antenna?
A: The GL-DY024 is optimized for 3G applications, typically operating within the frequency bands designated for 3G networks. For specific frequency requirements, please refer to the technical specifications provided with the product.
