GL-DYM300
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |

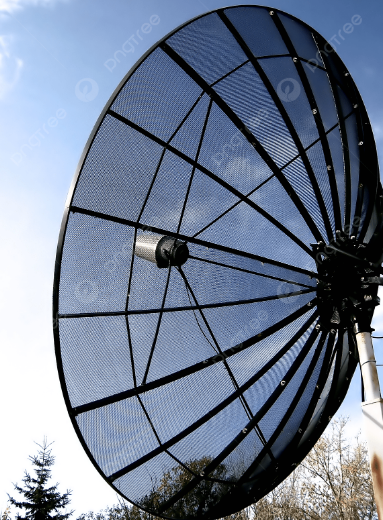

Product Name | 3m mesh antenna | |
Product Number | GL-DYM300 | |
Panel(sector divided) | 8 | |
Aperture Diameter-cm | 300 | |
C-band Gain@4GHz | 40.15 | |
Ku-band Gain@12.5GHz | -- | |
F/D Ratio | 0.385 | |
Focus length-cm | 115.5 | |
Material | Aluminium mesh | |
Finish | Polyester Powder coating | |
Mounting type | Pole/Polar mount | |
Elevation Alignment-° | 0-90 | |
Azimuth Alignment-° | 0-360 | |
Operational winds | Able to receive | 25m/sec |
Able to re-set | 40m/sec | |
Not broken&fly away | 60m/sec | |
Ambient Temperature℃ | -40--+60 | |
Relative Humidity | 0-100％ | |
Product Introduction
High C-Band Gain：The GL-DYM300 offers an excellent 40.15dB gain in the C-Band at 4GHz. This high gain enables it to capture and strengthen weak C-Band signals effectively. Whether for satellite communication or broadcasting, it ensures a stable and strong signal connection, providing reliable performance.
Durable Construction：Made of aluminium mesh with a polyester powder coating, the antenna is both lightweight and highly durable. Aluminium mesh provides good corrosion resistance, and the polyester powder coating protects it from environmental factors. It can withstand strong winds up to 60m/sec, extreme temperatures from -40℃ to +60℃, and high humidity levels of 0 - 100%, ensuring long - term use without significant degradation.
Flexible Mounting Design：Featuring a pole/polar mount design with adjustable elevation (0 - 90°) and azimuth (0 - 360°) alignment, the GL-DYM300 provides great flexibility in installation. Users can easily optimize the antenna's position to achieve the best signal reception, whether it's for covering a specific area or aligning with a particular satellite.
Optimal F/D Ratio and Focal Length：With an F/D ratio of 0.385 and a focus length of 115.5CM, the antenna is designed to focus signals precisely. This optimal combination enhances the antenna's signal - gathering ability, improving its overall performance and maximizing the utilization of satellite signals.
Wide Environmental Tolerance：Operating within a wide temperature range and high humidity levels, the GL-DYM300 can function in diverse environments. Its ability to withstand different weather conditions makes it suitable for use in various regions, from cold areas to hot and humid tropical regions.
Application scenarios
Satellite Communication in Remote Areas：In remote areas where traditional communication infrastructure is lacking, the GL-DYM300 can be used for satellite - based communication. Installed on poles, it can establish a connection with satellites, enabling residents to access the internet, make voice calls, and transfer data.
Broadcast Signal Reception：For broadcast stations, especially those in areas with weak signals, this antenna can be used to receive satellite - transmitted broadcast signals. Its high C-Band gain helps in capturing clear signals, ensuring high - quality broadcasts for viewers and listeners.
Maritime Communication on Islands：On islands, where communication can be challenging, the GL-DYM300 can be installed on poles near coastal areas. Its adjustable mounting and good wind resistance make it suitable for maritime communication, allowing for contact with ships and other coastal stations.
Industrial Monitoring in Remote Sites：Industries with remote monitoring sites, such as oil fields or mining areas, can use this antenna for satellite - based data transmission. Sensors at these sites can send data to a central control station via the antenna, enabling real - time monitoring and control of industrial processes.
Emergency Communication in Disaster - Prone Areas：In disaster - prone areas, when traditional communication networks may be disrupted, the GL-DYM300 can be quickly deployed. Its wide environmental tolerance and good wind resistance make it a reliable choice for emergency communication, helping responders stay connected.
Q:What satellites is this antenna compatible with?
A:Compatible with C-band (4GHz) and Ku-band (12.5GHz) satellites, depending on LNB configuration.
Q:Can it withstand heavy snow or rain?
A:Yes, the polyester coating and mesh design prevent snow/rain accumulation.
Q:Is assembly included?
A:The antenna comes pre-assembled; mounting hardware is included.
Q:How to align the antenna accurately?
A:Use a satellite signal meter with the adjustable elevation/azimuth mounts for precision.
Q:Does it require grounding?
A:Yes, grounding is recommended for lightning protection in exposed areas.
Q:Maximum pole diameter supported?
A:Compatible with poles up to 10cm diameter (consult manual for details).
Q:Can it operate in coastal regions?
A:Yes, the corrosion-resistant coating suits salty or humid coastal environments.
