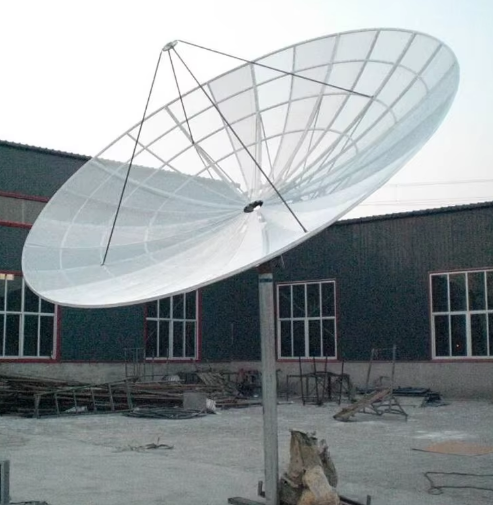

GL-DYS300AM8PM
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Item No | GL-DYS300AM8PM | |
Panel(Sector Divided) | 6/8 | |
Aperture Diameter | 300CM | |
C-Band Gain@ 4GHz | 40.15dB | |
Ku-Band Gain@ 12.5GHz | ||
F/D Ratio | 0.385 | |
Focus Length | 115.5CM | |
Material | Aluminium Mesh | |
Finish | Polyester Powder Coating | |
Mounting Type | Pole/Polar Mount | |
Elevation Alignment | 0～90° | |
Azimuth Alignment | 0～360° | |
Operational Winds | Able to receive | 25m/sec |
Able to re-set | 40m/sec | |
Not broken & fly away | 60m/sec | |
Ambient Temperature | -40℃～+60℃ | |
Relative Humidity | 0～100% | |
Product Introduction
Superior Signal Capture: Delivers a powerful 40.15dB C-Band gain at 4GHz, ideal for long-distance satellite communication in low-coverage zones.
Massive Aperture Design: 300CM diameter and 115.5CM focal length maximize signal reception, perfect for high-frequency Ku-Band (12.5GHz) applications.
Extreme Durability: Constructed with corrosion-resistant aluminium mesh and polyester coating, built to endure -40℃ to +60℃ temperatures and 0–100% humidity.
Unmatched Wind Resilience: Operates in 25m/s winds, resets after 40m/s gusts, and survives 60m/s storms without structural damage.
Versatile Mounting System: Pole/polar mount with 0–90° elevation and 360° azimuth adjustments ensures precise alignment for challenging installations
Diagram of installation
Application scenarios
Large-Scale Satellite Broadcasting: Ideal for TV/radio stations requiring wide-area signal coverage.
Defense & Emergency Systems: Reliable for secure military communication or disaster response in remote areas.
Meteorological Monitoring: Suitable for weather stations in hurricane-prone or polar regions.
Offshore & Remote Infrastructure: Ensures stable connectivity for oil rigs, ships, or isolated research facilities.
FAQ
Q: Does this antenna support both C-Band and Ku-Band?
A: Yes, it’s optimized for C-Band (4GHz) and compatible with Ku-Band (12.5GHz) applications.
Q: How does the 300CM aperture improve performance?
A: The larger diameter enhances signal capture efficiency, especially for high-frequency transmissions.
Q: Can it survive extreme weather?
A: Yes, it withstands 60m/s winds, resets after 40m/s gusts, and operates in -40℃ to +60℃ conditions.
Q: What does "6/8 Panel" mean?
A: The antenna can be configured with 6 or 8 modular panels for flexible installation.
Q: Is professional installation required?
A: While the modular design simplifies assembly, professional setup is recommended for optimal alignment.
Q: How does the polyester coating protect the antenna?
A: It prevents corrosion and ensures durability in humid (0–100%) or salty environments.
Q: Is this suitable for mobile setups?
A: Yes, its lightweight mesh and adjustable mount make it viable for temporary or mobile installations.
