GL-DY7027VH3
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | ||
Frequency Range-MHz | 698-960/1710-2700 | 1710-2700 |
VSWR | ≤1.8 / ≤1.5 | ≤1.5 |
Gain-dBi | 2.5 / 3.5 | 3.5 |
Horizontal beam width | 360° | 360° |
Vertical beam width | 75°/ 55° | 55° |
Polarization | Vertical | Horizontal |
Input Impedance-Ω | 50 | |
Isolation between ports-dB | ≥25 | |
IntermodulationIM3(2x33dBm)- dBc | ≤-150 | |
Maximum input power-W | 50 | |
Lightning protection | DC Ground | |
Mechanical Specifications | ||
Input connector type | 2×N-K | |
Dimensions-mm | Φ180×120 | |
Antenna weight-KGS | 0.5 | |
Radiating Element Material | AI | |
Radome material | ABS | |
Radome color | White | |
Operating temperature | -40°C to +65 °C | |
Product Introduction
Dual Polarization Advantage：The GL-DY7027VH3 features dual polarization (vertical and horizontal), which can significantly improve signal reception and transmission. This allows it to better adapt to complex indoor electromagnetic environments, reducing interference and enhancing the overall wireless performance. It enables more stable connections for devices with different polarization requirements, ensuring seamless communication.
Wideband Functionality：Operating across the 698 - 960/1710 - 2700MHz frequency bands, the antenna offers wideband capabilities. This wide frequency coverage makes it compatible with multiple wireless technologies, such as 2G, 3G, 4G, and some WLAN standards. It can support a variety of wireless devices within the indoor space, providing versatile connectivity options.
Good Signal Gain：With a gain of 2.5 dBi in the 698 - 960MHz band and 3.5 dBi in the 1710 - 2700MHz band, the antenna effectively boosts the signal strength. This helps to extend the wireless coverage area, reducing signal dead zones and ensuring a more stable connection for devices. It can enhance the performance of wireless networks in large indoor areas, making it suitable for various indoor applications.

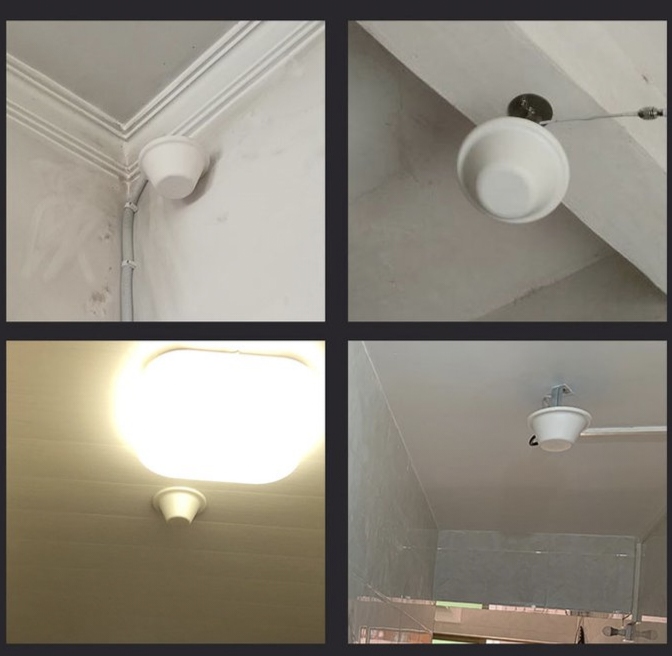

Compact and Lightweight Design：The antenna is lightweight and small-sized, making it easy to install on ceilings. Its compact design allows for convenient installation in various indoor spaces without adding excessive weight or taking up much space. This unobtrusive installation is ideal for maintaining the aesthetic and structural integrity of indoor environments.
Anti-ultraviolet and Durable Radome：Featuring an anti-ultraviolet ABS radome, the antenna is protected from UV damage. This is crucial for indoor installations where the antenna might be exposed to sunlight filtering through windows. The ABS material also provides durability, safeguarding the internal components from dust and minor impacts, ensuring long - term reliable operation.
Application scenarios
Commercial Spaces: Offices, malls, and hotels requiring uniform signal distribution.
Healthcare Facilities: Hospitals needing reliable connectivity for medical devices.
Industrial Zones: Warehouses with temperature extremes and wide-area coverage needs.
Public Venues: Airports, stadiums, and convention centers with high user density.
FAQ
Q: Is this antenna compatible with 5G networks?
A: Yes, it supports frequencies up to 2700 MHz, making it suitable for 4G/5G applications.
Q: How is the antenna mounted?
A: It’s designed for ceiling installation using standard brackets (not included).
Q: Can it operate in outdoor environments?
A: No, it’s optimized for indoor use but features UV-resistant materials for sunlit indoor areas.
Q: What connectors does it use?
A: Equipped with 2×N-K connectors for robust signal transmission.
Q: What’s the maximum power input?
A: Supports up to 50W input power, ideal for high-performance DAS setups.
Q: Does it include lightning protection?
A: Yes, DC grounding ensures basic surge protection for indoor systems.
