GL-DYZ03
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Product | GSM/3G Antenna |
P/N | GL-DYZ03 |
Electrical specifications | |
Frequency rang-MHz | 824-960/1710-1880/1920-2170 |
Gain -dBi | 3 |
VSWR | ≤2.0 |
Input Impedance-Ω | 50 |
Polarization | Vertical |
Max power -W | 50 |
Connector model | SMA male |
Mechanical Specifications | |
Size -mm | Φ22*273.5 |
Cables | RG58,5m |
Weight-g | 50 |
Color | Black |
Working Temperature -°c | -40～60 |
Humidity-% | 5~95 |

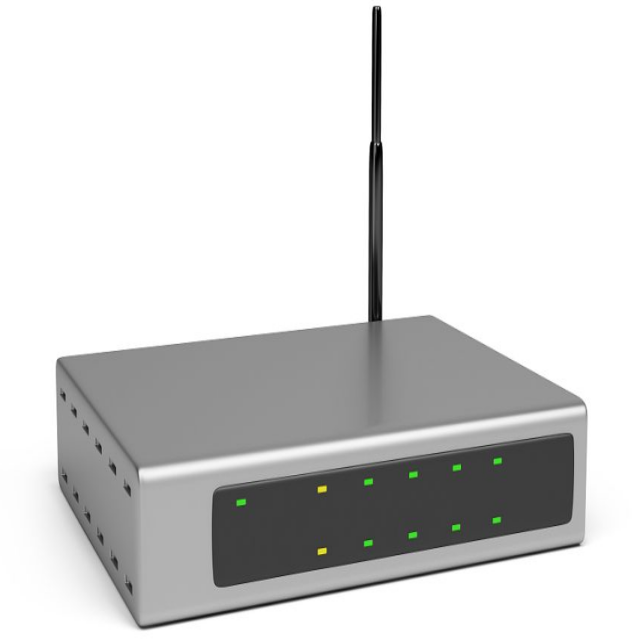

GSM/3G antennas are mainly used in mobile communication equipment, such as mobile phones, base stations, routers, etc., to achieve the reception and transmission of wireless signals. This antenna is designed for use in a specific frequency segment and is able to efficiently capture and transmit signals in this frequency range.
Vertical polarization means that the electric field vector of the antenna is along the vertical direction, which helps to reduce interference with antennas in other directions and improve communication efficiency and quality.
Choosing the right antenna type and frequency segment is crucial to ensure the reliability and performance of the communication system
