GL-DYG836
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
4G Magnet Antenna | |
GL-DYG836 | |
Electrical Index | |
Frequency-MHz | 824-960/1710-2170/2400-2700 |
VSWR | ＜1.5 |
Gain-dBi | 9 |
Normal Impedance-Ω | 50 |
Polarization | Vertical |
Mechanical Index | |
Cable Length | RG174,5m |
Connector | SMA male |
Antenna Dimension-mm | Ø90*595 |
Installation Way | Magnet |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
Wide Frequency Coverage：Operating across the 824 - 960MHz, 1710 - 2170MHz, and 2400 - 2700MHz frequency bands, this antenna is highly versatile. It can support various 4G networks, ensuring compatibility with a wide range of devices and service providers, and enabling seamless communication in different areas.
High Gain Performance：With a gain of 9 dBi, the GL - DYG836 effectively boosts the signal strength. This high gain allows for better long - range signal reception and transmission, reducing signal loss and interference. It ensures a more stable and reliable connection, especially in areas with weak 4G signals.
Low VSWR：The Voltage Standing Wave Ratio (VSWR) is less than 1.5. A low VSWR indicates efficient power transfer from the transmitter to the antenna and minimal signal reflection. This means that more of the transmitted power is used for signal radiation, improving the overall performance of the antenna.
Convenient Magnet Mounting：Featuring a magnetic base for installation, it offers great convenience. It can be easily attached to any metal surface, such as a vehicle's body, a metal pole, or a router's metal enclosure. This makes it ideal for quick and easy setup, and also allows for flexible placement to optimize signal reception.
Environmentally Friendly and Durable：Compliant with ROHS standards, it is environmentally friendly. Additionally, it can operate within a wide temperature range of - 40°C to + 85°C and a humidity range of 5% to 95%. This makes it suitable for use in various harsh environmental conditions, ensuring long - term reliable performance.

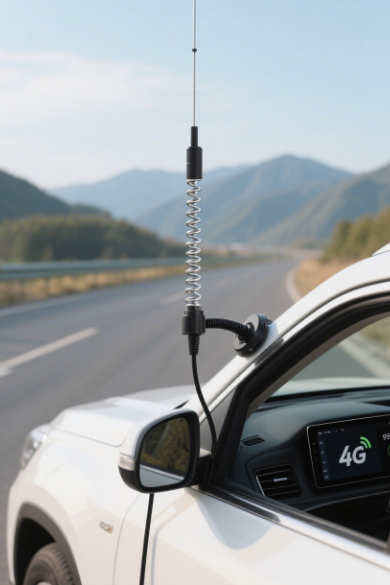

Vehicle Communication：In cars, trucks, RVs, or boats, the magnetic mount of the antenna makes it easy to install on the vehicle's exterior. It can enhance the 4G signal for in - car infotainment systems, navigation devices, and mobile hotspots, providing a stable internet connection while on the move.
Remote Area Connectivity：In rural or remote areas where 4G signals are weak, the antenna can be mounted on a metal structure near a building or a vehicle. It helps to boost the signal strength, enabling users to make calls, send messages, and access the internet more effectively.
Small Office or Home Networks：For small offices or homes with poor 4G reception, the antenna can be attached to a metal surface near the router or a device that needs better signal. It can improve the 4G connection for devices like security cameras, smart home hubs, or laptops, ensuring smooth communication and data transfer.
Industrial Monitoring and Control：In industrial settings, where 4G - enabled devices are used for monitoring and control purposes, the GL - DYG836 can be installed on metal equipment or structures. It provides a reliable connection for real - time data transfer between sensors, actuators, and control centers.
Temporary Event Setups：At outdoor events, such as concerts, festivals, or sports games, where temporary 4G connectivity is required, the antenna can be quickly mounted on metal poles or vehicles. It helps to ensure that event staff and attendees can stay connected via their mobile devices.
Q:What is the maximum distance the GL - DYG836 antenna can receive a 4G signal?
A:The actual reception distance depends on various factors such as the strength of the base station signal, environmental obstacles, and interference. However, the 9 dBi gain helps to extend the range, and in relatively clear environments, it can improve signal reception over a significant distance compared to devices without the antenna.
Q:Can the antenna be used with any 4G device?
A:As long as the 4G device has an SMA female connector and operates within the 824 - 960MHz, 1710 - 2170MHz, or 2400 - 2700MHz frequency bands, it should be compatible with the GL - DYG836 antenna. But it's advisable to check the device's specifications for optimal performance.
Q:Is the magnetic base strong enough to keep the antenna in place during vehicle movement?
A:Yes, the magnetic base is designed to provide a strong hold. It can withstand vibrations in the range of 10 to 55Hz with a 1.5mm amplitude for 2 hours, which is sufficient to keep the antenna securely attached during normal vehicle movement.
Q:How does the vertical polarization affect the signal?
A:Vertical polarization means that the electrical field of the electromagnetic wave is oriented vertically. In many outdoor and urban environments, vertical polarization can provide better signal reception and transmission, especially when communicating with base stations that also use vertical polarization. It can help reduce interference and improve the overall signal quality.
Q:Can the cable length be extended?
A:While the standard cable length is 5m (RG174), it is possible to extend the cable using appropriate extension cables. However, adding an extension cable may increase signal loss. It's recommended to use high - quality extension cables and test the signal performance after extension.
Q:What is the warranty period for the GL - DYG836 antenna?
A:The warranty details for the GL - DYG836 antenna are not provided in the given information. Please contact our sales team or check the product documentation for specific warranty information.
