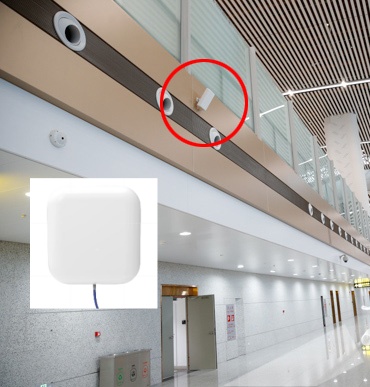

GL6060V-6
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Product Specifications
Electrical Specifications | |||||
Frequency Range- MHz | 617-698 | 698-960 | 1710-2700 | 3400-4000 | 4900-6000 |
VSWR | ≦2.5 | ||||
Gain- dBi | 4.0 | 5.0 | 7.0 | 5.5 | 7.0 |
Horizontal beam width | 90 | 80 | 65 | 30 | 25 |
Vertical beam width | 75 | 70 | 60 | 25 | 20 |
Polarization | Vertical | ||||
Isolation between ports- dB | ≥23 | ||||
Intermodulation IM3(2x43dBm)- dBc | ≤-153 | ||||
Input Impedance-Ω | 50 | ||||
Maximum input power- W | 50 | ||||
Lightning protection | DC Ground | ||||
Mechanical Specifications | |||||
Input connector type | N-female | ||||
Installation | Mounting on the wall | ||||
Dimensions- mm | 180×170×60 | ||||
Antenna weight-KGS | 0.4 | ||||
Radiating Element Material | AI | ||||
Radome material | ABS | ||||
Radome color | White | ||||
Operating temperature | -40°C to +65 °C | ||||
Product Introduction
●Exceptional 5G Performance: Enhance your connectivity with the GL6060V-6 High Gain 5G Wall Mount Antenna, designed to deliver superior signal reception and reliability.
●Hassle-Free Installation: Featuring an N-female connector, this antenna ensures quick and easy mounting on the wall, making setup a breeze.
●Compact & Lightweight Design:Measuring 180×170×60 mm and weighing only 0.4 kg, this antenna is perfectly sized for various settings, from home installations to commercial environments.
●Durable & Weather-Resistant: Constructed with a robust ABS radome, this antenna is built to withstand the elements, while the sleek white finish provides a discreet aesthetic for seamless integration into any space.
●Versatile Frequency Support: The GL6060V-6 not only supports multiple frequency intervals but also maximizes your connectivity options, making it an ideal choice for 5G solutions.
●Safety First: Equipped with DC Ground Lightning Protection, our antenna safeguards your equipment from unexpected electrical surges, ensuring long-term performance.
FAQ
Q:Can I get one sample?
A:Yes, sample is available.
Q:What's the delivery time?
A:3-5 working days for the sample, 10-15 working days for quantity below 5K.
Q:What is the gain of the GL6060V-6 antenna?
A:The gain of this antenna is different in different frequency ranges, supporting 4-7dbi gain devices.
Q: How do I install the GL6060V-6 5G Wall Mount Antenna?
A: Installing the GL6060V-6 is straightforward due to its wall mount design. Simply use appropriate mounting hardware (not included) to secure the antenna to your chosen wall location. Ensure that the N-female connector is compatible with your equipment. For safety, follow all instructions regarding DC ground lightning protection to safeguard your investment. Should you require more specific guidance, please refer to the provided installation manual or contact our customer support for detailed assistance.
Q: What is the weight of the GL6060V-6 antenna, and is it easy to handle?
A: The GL6060V-6 antenna weighs only 0.4 kg, making it lightweight and easy to handle during installation. This feature not only simplifies the mounting process but also ensures that the antenna can be easily adjusted or relocated if needed.
Q: Is the GL6060V-6 antenna weather resistant?
A: Yes, the GL6060V-6 5G Wall Mount Antenna is designed to withstand various weather conditions. The antenna's ABS radome material provides durability and resilience, ensuring that it can endure exposure to the elements while maintaining performance. Moreover, with built-in DC ground lightning protection, you can feel secure having this antenna installed outdoors or in exposed areas.
Q: Can the GL6060V-6 antenna be used for multiple types of equipment?
A: Absolutely! The GL6060V-6 antenna supports multiple frequency intervals, which makes it suitable for a range of devices that require 5G connectivity. Whether for personal, commercial, or industrial use, this antenna can enhance the signal for various equipment, ensuring that you stay connected effectively. Please check your device specifications to confirm compatibility with the N-female connector.
For the specific parameters and sizes of this product, please click the right email or telephone to consult us.
