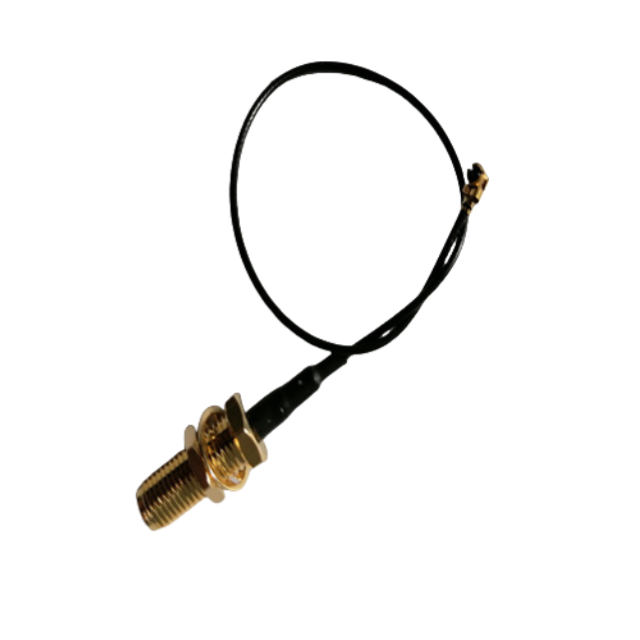

C011
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical specifications | |
Frequency Range(GHz) | 0-3 |
Impedance(ohm) | 50 |
Max power (W) | 50 |
VSWR | <1.20+0.002f |
Operating voltage(max) | 335v |
Pressure resistance(rms) | 1000v |
Durability | >500 cycles |
Mechanical specifications | |
Connector | MMCX/UFL |
Length of cable | 1.37cable 120±5mm |
Lighting protection | DC grounding |
Gasket | Copper gold plated |
Nuts | Copper gold plated |
SMA Housing | Copper gold plated |
Insulator | PTFE |
Temperature range | -65~ +250 |
Product Introduction
Wide Frequency Coverage：The C011 cable has a frequency range of 0 - 3GHz, making it suitable for a wide variety of applications across different wireless communication systems and electronic devices that operate within this frequency spectrum.
Stable 50Ω Impedance：With an impedance of 50 ohms, the cable ensures efficient power transfer. This stable impedance is crucial for minimizing signal reflection and maintaining signal integrity during transmission, which is essential for high - performance signal - related operations.
Low VSWR：The VSWR of the C011 cable is <1.20 + 0.002f. A low VSWR indicates excellent impedance matching, reducing signal reflection and ensuring that most of the power is effectively transmitted through the cable. This results in better signal quality and overall system performance.
High - Power Handling Capacity：It can handle a maximum power of 50W, making it suitable for applications that require the transmission of relatively high - power signals. This high - power - handling ability expands its usability in various power - intensive wireless and electronic setups.
Durable and Well - Designed：The cable has a durability of >500 cycles and features copper gold - plated components such as the gasket, nuts, and SMA housing, along with a PTFE insulator. The gold - plating provides good corrosion resistance, and the PTFE insulator offers excellent electrical insulation. Additionally, it has a wide temperature range of - 65~ +250℃, making it suitable for use in diverse environmental
Application scenarios
Industrial automation equipment signal transmission
Military/aerospace communication systems
5G/Wi-Fi/Bluetooth device antenna connections
High-power telecom base stations
Robotics and IoT device internal wiring
FAQ
Q:What connectors does this cable use?
A:It features MMCX/UFL to RP-SMA(F) connectors for flexible device integration.
Q:Is it suitable for outdoor use?
A:Yes, its PTFE insulation and wide temperature range (-65°C to +250°C) ensure outdoor durability.
Q:Can it handle high-power applications?
A:Yes, it supports up to 50W max power and 1000V pressure resistance.
Q:How long is the cable?
A:The standard length is 120±5mm, but custom lengths are available.
Q:What is the VSWR performance?
A:VSWR remains below 1.20+0.002f across the 0-3 GHz range.
Q:Is DC grounding included?
A:Yes, it features DC grounding for lightning protection.
Q:Are the connectors corrosion-resistant?
A:Yes, gold-plated connectors prevent oxidation and ensure stable conductivity.
Q:What industries is this cable designed for?
A:Ideal for telecom, aerospace, industrial automation, and military applications.
