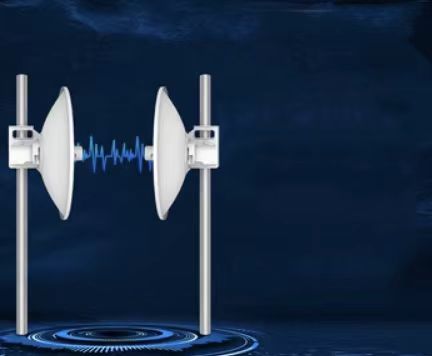

GL-DY5800V24A
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |
Frequency Range-MHz | 5725-5850 |
Polarization | Vertical |
VSWR | ≤1.5 |
Gain-dBi | 24 |
Horizontal beam width | 9° |
Vertical beam width | 9° |
Front-to-back ratio-dB | ≥30 |
Input Impedance-Ω | 50 |
Maximum input power-W | 100 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N-K |
Dimensions-m | φ0.4 |
Antenna weight-kg | 3.0 |
Reflector material | Aluminum |
Reflecting surface color | Gray |
Mechanical tilt | 0～20° |
Operating temperature | -40°C to + 65 °C |
Rated Wind Velocity-m/s | 60 |
Mounting hardware -mm | φ35～φ50 |
Product Introduction
High Gain and Front-to-Back Ratio: With a gain of 24 dBi and a high front-to-back ratio, the GL-DY5800V24A can effectively transmit and receive signals. The high gain ensures strong signal strength over long distances, while the high front-to-back ratio reduces interference from the backside of the antenna, providing a cleaner and more reliable wireless connection.
Anti-aging Surface Coating: The anti-aging surface coating protects the antenna from environmental factors such as sunlight, moisture, and temperature changes. This extends the antenna's lifespan and maintains its performance over time, making it a durable choice for long-term use.
Narrow Beamwidth: The 9° horizontal and vertical beamwidths allow for highly focused signal transmission. This is beneficial for point-to-point and point-to-multipoint systems, as it enables precise targeting of the receiving end, minimizing signal dispersion and maximizing signal strength at the intended destination.
High Power Handling: With a maximum input power of 100 W, the antenna can handle relatively high power levels. This makes it suitable for applications that require strong signals, such as long-distance wireless communication or areas with high interference.
Wide Operating Temperature Range: Operating from -40°C to +65°C, the GL-DY5800V24A can function in various environments. Whether it's a cold outdoor location or a hot industrial area, the antenna can maintain its performance, ensuring reliable connectivity in different climates.
Application scenarios
Long-range point-to-point wireless links (e.g., connecting buildings or remote sites).
5.8GHz WLAN/WiFi network extensions in rural or industrial areas.
Surveillance systems requiring stable, high-bandwidth communication.
Outdoor IoT and telemetry applications in harsh environments.
Wind-resistant installations (rated for 60m/s wind speeds).
FAQ
Q:What is the antenna’s frequency range?
A:It operates at 5725-5850MHz, optimized for 5.8GHz wireless systems.
Q:Is this antenna waterproof?
A:While weather-resistant, it is not fully waterproof; ensure proper outdoor housing if exposed to heavy rain.
Q:What connector type is used?
A:N-K connector for high-performance RF connectivity.
Q:How is the antenna mounted?
A:Compatible with poles 35–50mm in diameter (mounting hardware not included).
Q:What is the front-to-back ratio?
A:≥30dB, minimizing interference from rear signals.
Q:Can it withstand strong winds?
A:Yes, rated for wind speeds up to 60m/s.
Q:Does it require grounding?
A:Yes, includes DC ground lightning protection.
Q:What is the reflector material?
A:Aluminum for lightweight durability and corrosion resistance.
