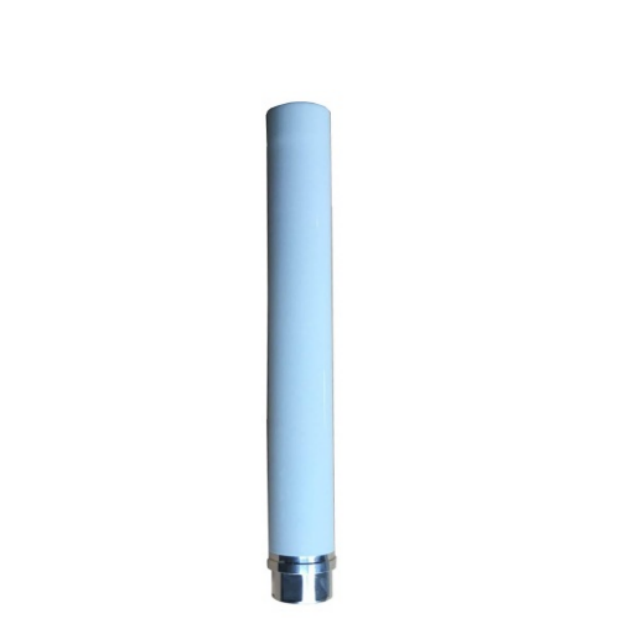

GL-2458V-8
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
| |
Frequency Range | 2400-2483/5150-5850MHz |
VSWR | ≤2.0 |
Gain | 6/8dBi |
Horizontal beam width | 360° |
Vertical beam width | 30°/15° |
Polarization | Vertical |
Input Impedance | 50Ω |
Maximum input power | 50W |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N-K |
Dimensions | Ф23×273mm |
Antenna weight | 0.3kg |
Radome material | ABS |
Radome color | Gray |
Operating temperature | -40°c～60°c |
Rated Wind Velocity | 60 m/s |
Mounting hardware | ￠35～￠60 |
Product Introduction
Dual - Band Functionality：The GL - 2458V - 8 antenna covers two important frequency ranges, 2400 - 2483MHz and 5150 - 5850MHz. This dual - band design makes it suitable for a wide range of applications, such as Wi - Fi 2.4GHz and 5GHz networks, ensuring compatibility with various wireless devices.
Omni - directional Coverage：With a 360° horizontal beam width, the antenna can transmit and receive signals in all horizontal directions. This omni - directional feature is ideal for applications where a wide - area signal distribution is required, providing seamless coverage in different environments.
High Gain：It offers a gain of 6dBi in the 2400 - 2483MHz band and 8dBi in the 5150 - 5850MHz band. High gain allows the antenna to effectively strengthen weak signals, improving the performance and range of wireless communication systems.
Low VSWR：The voltage standing wave ratio (VSWR) is ≤2.0, indicating good impedance matching. Low VSWR reduces signal reflection, ensuring that more power is transmitted through the antenna and received by the target device, which results in a more stable and reliable connection.
Durable and Weather - Resistant：Made with an ABS radome, the antenna is durable and can withstand various environmental conditions. It has a rated wind velocity of 60 m/s and can operate in a temperature range of - 40°C to 60°C. Additionally, it has DC ground lightning protection, safeguarding the connected equipment from potential lightning - induced damage.
Application scenarios
Enterprise WiFi Coverage: Seamless connectivity in large offices, campuses, or hotels.
Industrial IoT: Reliable data transmission in factories, warehouses, or smart agriculture systems.
Outdoor Surveillance: Stable signal for wireless cameras in remote or rugged areas.
Public Hotspots: High-speed internet distribution in parks, stadiums, or transportation hubs.
FAQ
Q:Is this antenna compatible with standard routers?
A:Yes, the N-K connector works with most routers using an N-type interface.
Q:Can it withstand heavy rain or snow?
A:The ABS radome is weatherproof, rated for extreme temperatures and harsh weather.
Q:What’s the maximum coverage range?
A:Range depends on environment and equipment, but the high gain ensures strong coverage up to 500+ meters in open areas.
Q:Does it require a ground wire for lightning protection?
A:Yes, the DC grounding feature requires proper earthing for optimal safety.
Q:Is the antenna suitable for 5G networks?
A:It supports 5GHz bands but is not optimized for cellular 5G frequencies.
Q:Can it be mounted on a vehicle?
A:Yes, the lightweight design and durable construction make it ideal for mobile setups.
Q:Does it work with PoE devices?
A:Yes, but ensure your PoE injector/switch complies with the antenna’s 50Ω impedance.
| |
