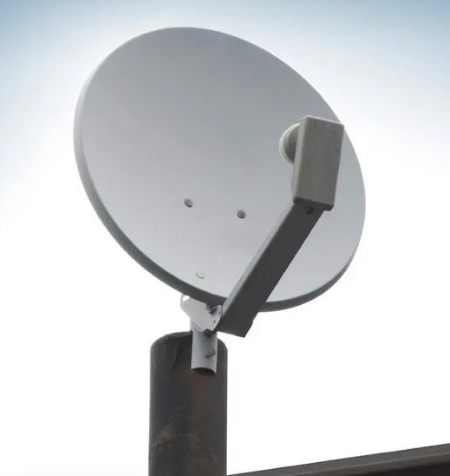

Ku Band 45x50cm Offset Satellite Dish GLKU-45

Optimized for Ku Band + 12.5GHz frequencies, ensuring crisp signal quality for TV, broadband, or data in both urban and remote areas.
  • GLKU-45

  • Asialeren

  • 8517710000

  • GLKU-45.pdf

Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Model

GLKU-45

Short axle

45CM

Long axle

50CM

Ku wave band plus 12.5GHz

33dB

Focal length

270MM

Material

Steel plate

Finishing

Spray to mould

Support

Is multi-purpose

Pitch

0-90

Level

fixed/0 -360

Wind
Speed

May take over

25m/sec

May repeat

40m/sec

Not breakage

60m/sec

Working environmental temperature

-40℃~+60℃

Product Introduction

  1. Sufficient Gain for Signal Capture:The GLKU - 45 offers a 33dB gain in the Ku wave band plus 12.5GHz. This gain enables the antenna to effectively capture and boost satellite signals, ensuring a stable connection for various satellite - based services. Whether it's for satellite TV or data transmission, users can rely on it for a consistent and strong signal.

  2. Sturdy Steel Plate Build:Made of steel plate, the antenna is highly durable. Steel provides excellent resistance to different weather conditions, allowing the antenna to withstand wind speeds up to 60m/sec without breakage. It can endure harsh outdoor environments, making it suitable for long - term use in different climates.

  3. Adjustable Multi - purpose Support:With a multi - purpose support, the GLKU - 45 allows for adjustable pitch (0 - 90) and level (fixed/0 - 360). This flexibility enables users to optimize the antenna's position for the best signal reception. It can be installed in a variety of locations, such as rooftops, poles, or in areas with specific alignment requirements.

  4. Optimized Focal Length:The 270MM focal length is designed to focus satellite signals accurately onto the feed horn. This optimized focal length enhances the antenna's signal - gathering ability, improving its overall performance. It ensures efficient signal collection and transmission, maximizing the utilization of satellite signals.

  5. Wide Temperature Range Operation:The GLKU - 45 can operate within a temperature range of - 40℃ to +60℃. This wide temperature tolerance makes it suitable for use in diverse climates, from extremely cold regions to hot environments. It can maintain its performance regardless of temperature fluctuations, providing reliable satellite communication throughout the year.

Application scenarios

  • Urban Satellite TV/Internet: Compact size minimizes visual impact while delivering strong signals in densely populated areas.

  • Mobile Communication: Lightweight and portable for RVs, boats, or emergency vehicles requiring reliable connectivity.

  • Harsh Climate Deployments: Resilient in extreme heat, cold, or high-wind coastal/mountainous regions.

  • Temporary Event Broadcasting: Quick setup for festivals, sports events, or disaster recovery communication.

FAQ

Q:Is the GLKU-45 compatible with C Band satellites?
A:No, it is designed exclusively for Ku Band and 12.5GHz frequencies.


Q:Does it include mounting hardware?
A:Yes, the multi-purpose support fits standard poles; custom brackets are available upon request.


Q:How to maintain the dish in salty environments?
A:Rinse monthly with fresh water and inspect the coating for damage to prevent corrosion.


Q:Can I install it myself?
A:Yes, DIY-friendly with basic tools, but professional alignment ensures optimal performance.


Q:Is it suitable for mobile applications like trucks?
A:Absolutely! Its compact size and sturdy build make it ideal for mobile or portable setups.


Q:How to clean the dish surface?
A:Use water and mild detergent; avoid abrasive materials to preserve the spray coating.
