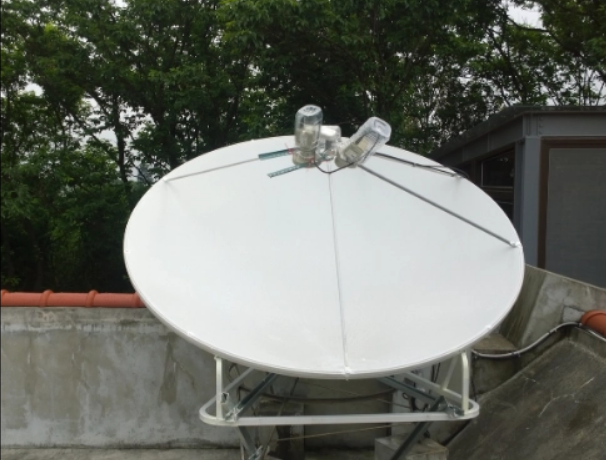

GLKU-100
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Model | GLKU-100 | |
Short axle | 100CM | |
Long axle | 110cm | |
Ku wave band plus 12.5GHz | 41.62dB | |
Focal length | 620mm | |
Material | Steel plate | |
Finishing | Spray to mould | |
Support | Is multi-purpose | |
Pitch | 0-90 | |
Level | fixed/0 -360 | |
Wind | May take over | 25m/sec |
May repeat | 40m/sec | |
Not breakage | 60m/sec | |
Working environmental temperature | -40 ~+60℃ | |
Product Introduction
High - Performance Signal Gain：The GLKU - 100 offers an outstanding 41.62dB gain in the Ku wave band plus 12.5GHz. This high gain enables the antenna to capture and amplify weak satellite signals with great efficiency. Whether for satellite TV or high - speed data transfer, it ensures a stable and strong connection, delivering a top - notch user experience.
Durable Steel Plate Build：Made of steel plate, the antenna is extremely robust. Steel provides excellent resistance to various weather conditions, allowing it to withstand wind speeds up to 60m/sec without breakage. This durability makes it suitable for long - term outdoor use in diverse climates, reducing the need for frequent replacements.
Flexible and Adjustable Support：Featuring a multi - purpose support, the GLKU - 100 allows for adjustable pitch (0 - 90) and level (fixed/0 - 360). This flexibility enables users to optimize the antenna's position for the best signal reception. It can be installed in a wide range of locations, from rooftops to poles, and adjusted to meet specific alignment requirements.
Optimized Focal Length：With a 620mm focal length, the GLKU - 100 is designed to focus satellite signals precisely onto the feed horn. This optimized focal length enhances the antenna's signal - gathering ability, improving its overall performance. It ensures efficient signal collection and transmission, maximizing the utilization of satellite signals.
Wide Temperature Range Operation：The GLKU - 100 can operate within a temperature range of - 40 ~+60 ℃. This wide temperature tolerance makes it suitable for use in different environments, from extremely cold regions to hot areas. It can maintain its performance regardless of temperature fluctuations, providing reliable satellite communication throughout the year.
Application scenarios
Offshore Oil Rigs & Ships: Resists saltwater corrosion and extreme winds for reliable maritime communication.
Polar Research Facilities: Ensures uninterrupted data transmission in sub-zero temperatures and blizzard conditions.
Urban Broadcast Hubs: High gain minimizes interference in dense urban areas for premium TV or internet services.
Disaster Recovery Teams: Rapid deployment in storms or earthquakes for emergency communication networks.
FAQ
Q:Is the GLKU-100 compatible with C Band satellites?
A:No, designed exclusively for Ku Band and 12.5GHz frequencies.
Q:Does it include mounting hardware?
A:Yes, the multi-purpose support fits standard poles; custom mounting solutions are available upon request.
Q:How to maintain the dish in coastal areas?
A:Rinse monthly with fresh water and inspect the spray coating for scratches or corrosion.
Q:Is it suitable for mobile applications like ships?
A:Absolutely! Its robust build and adjustable design ensure stability in mobile or marine environments.
Q:How to clean the dish surface?
A:Use water and mild detergent; avoid abrasive materials to preserve the protective coating.
Q:Can the GLKU - 100 be used for C - band satellite services?
A:The GLKU - 100 is designed specifically for the Ku wave band plus 12.5GHz. Using it for C - band services may lead to poor performance as it's not optimized for C - band frequencies. It's best to use an antenna designed for the C - band for such services.
