GL-DY7060H3
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | ||||||
Frequency Range-MHz | 617-960 | 1350-1550 | 1710-2700 | 3400-3800 | 4900-7125 | |
VSWR | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | |
Gain- dBi | 2.0 | 3.5 | 4.5 | 6.0 | 6.0 | |
Horizontal beam width | 360° | 360° | 360° | 360° | 360° | |
Vertical beam width | 65° | 55° | 55° | 50° | 45° | |
Polarization | Horizontal | |||||
IntermodulationIM3 (2x43dBm)- dBc | ≤-150 | |||||
Input Impedance-Ω | 50 | |||||
Maximum input power- W | 50 | |||||
Lightning protection | DC Ground | |||||
Mechanical Specifications | ||||||
Input connector type | N female | |||||
Dimensions- mm | Ø220×18 | |||||
Antenna weight- kg | 0.3 | |||||
Radiating Element Material | PCB | |||||
Radome material | ABS | |||||
Radome color | White | |||||
Operating temperature | -40°C to +65 °C | |||||
Product Introduction
●Omnidirectional Coverage: Experience enhanced signal reception with our Omni Ceiling Mount Antenna, designed for superior performance in indoor environments.
●N Female Connector: Equipped with a standard N female connector, this antenna ensures easy integration into your existing distributed antenna system setup.
●Compact and Lightweight Design: Measuring just Ø220×18mm and weighing only 0.3kg, this antenna is perfect for installations where space is limited.
●Wide Bandwidth Performance: Supports a broad range of frequencies, providing reliable connectivity for various applications without compromising on quality.
●Durable Anti-Ultraviolet ABS Radome: Built to withstand harsh indoor conditions, the robust ABS radome ensures long-lasting durability and protection against UV exposure.
●Innovative PCB Material for Radiating Element: The high-quality PCB design improves signal efficiency, maximizing performance while maintaining a sleek aesthetic.
FAQ
Q:Can I get one sample?
A:Yes, sample is available.
Q:What's the delivery time?
A:3-5 working days for the sample, 10-15 working days for quantity below 5K.
Q: What is the purpose of the Omni Ceiling Mount Antenna?
A: The Omni Ceiling Mount Antenna is designed to enhance the signal reception and transmission in indoor distributed antenna systems. It helps improve wireless connectivity in various environments such as offices, warehouses, and public spaces, guaranteeing a reliable and robust signal for your devices.
Q: What are the dimensions and weight of the antenna?
A: The Omni Ceiling Mount Antenna features compact dimensions of Ø220×18mm (8.66×0.71 inches) and weighs only 0.3kg (0.66 lbs). Its lightweight and small size make it easy to install without causing any strain on the ceiling structure.
Q: How durable is the Omni Ceiling Mount Antenna?
A:This antenna is built with an anti-ultraviolet ABS radome, providing excellent durability and resistance to environmental factors. It is engineered to maintain its performance even in varying indoor conditions, ensuring longevity and reliability in your setup.
Q: What type of connector does the antenna use?
A: The Omni Ceiling Mount Antenna is equipped with an N female connector, which is industry-standard for RF applications, ensuring compatibility with a variety of RF cables and systems.
Q: Is this antenna suitable for various bandwidths?
A: Yes! The Omni Ceiling Mount Antenna boasts a wide bandwidth, making it suitable for different applications across various frequency ranges. This feature ensures optimal performance regardless of the specific wireless standards you are utilizing.
Q: What environments are best suited for this antenna?

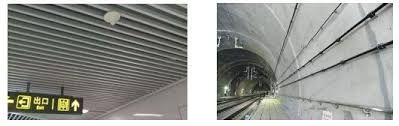

A:This antenna is ideal for indoor environments where reliable wireless connectivity is essential, such as offices, retail spaces, museums, or any large buildings that require a distributed antenna system for seamless coverage.
Q: What material is used for the radiating element?
A:The radiating element of the Omni Ceiling Mount Antenna is made of high-quality PCB material, ensuring consistent performance while maintaining compactness and reliability.
