GL6040V3
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Product Specifications:
Electrical Specifications | |||||
Frequency Range-MHz | 600-960MHz | 1425-1690 MHz | 1690-2700MHz | 3300-4000MHz | |
VSWR | ≤2.0 | ≤1.8 | ≤1.8 | ≤1.8 | |
Gain-dBi | 2.5dBi | 4.0dBi | 5.0dBi | 4.0dBi | |
Polarization | Horizontal | ||||
Vertical beam width | 360° | ||||
Horizontal beam width | 120° | 90° | 70° | 60° | |
Intermodulation IM3(2x33dBm)- dBc | ≤-150dBc | ||||
Input Impedance-Ω | 50Ω | ||||
Maximum input power- W | 50W | ||||
Lightning protection | DC Ground | ||||
Mechanical Specifications | |||||
Input connector type | N female | ||||
Dimensions-mm | Φ190×73 | ||||
Antenna weight-KGS | 0.25 | ||||
Radiating Element Material | PCB | ||||
Radome material | ABS | ||||
Radome color | white | ||||
Operating temperature | -40°C to +65 °C | ||||
Product Introduction:

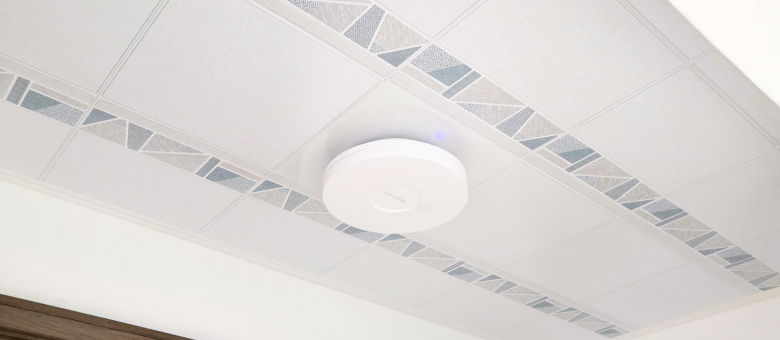

●Enhanced Connectivity: Experience superior signal reception with our 5G/LTE Omni Ceiling Mount Antenna GL6040V3, designed to support indoor distributed antenna systems for reliable wireless communication.
●Compact and Lightweight Design: Weighing only 0.25 kg and measuring Φ190 × 73 mm, this antenna is perfect for tight spaces while offering robust performance without adding bulk.
●Wide Frequency Range: This versatile antenna covers a broad frequency range from 600-960 MHz, 1425-1690 MHz, 1690-2700 MHz, to 3300-4000 MHz, ensuring compatibility with various networks and devices for optimal connectivity.
●Durable and UV Resistant: Constructed with an anti-ultraviolet ABS radome, our antenna is built to withstand harsh environments, ensuring long-lasting durability and reliability.
●360° Beam Coverage: Featuring a 360° vertical beam width, this ceiling mount antenna provides comprehensive coverage, making it an ideal solution for enhancing signal strength in large indoor spaces.
FAQ
Q:Can I get one sample?
A:Yes, sample is available.
Q:What's the delivery time?
A:3-5 working days for the sample, 10-15 working days for quantity below 5K.
Q: What type of connectivity does the Ceiling Mount Antenna GL6040V3 support?
A:The Ceiling Mount Antenna GL6040V3 is designed to support 5G and LTE connectivity. This means it can enhance your indoor distributed antenna system, ensuring you have a reliable and high-speed connection for your devices. Its wide bandwidth allows for ample data throughput, making it an ideal choice for a variety of applications.
Q: Is it difficult to install the GL6040V3 antenna?
A: The GL6040V3 antenna is designed for straightforward installation. It features a lightweight design (only 0.25 kg) and compact dimensions (Φ190×73 mm), allowing it to be easily mounted on ceilings in various settings. Whether it's for residential, commercial, or industrial use, you'll find installation to be efficient and hassle-free.
Q: What is the quality of the GL6040V3 antenna?
A:The GL6040V3 antenna is constructed using high-quality materials to ensure durability and performance. It has an anti-ultraviolet ABS radome that protects against harsh environmental conditions. The N female connector and PCB radiating element material enhance its functional capabilities, while the white ABS radome material provides a sleek aesthetic.
Q: What is the beamwidth of the GL6040V3 antenna?
A: The GL6040V3 ceiling mount antenna offers a 360° vertical beam width, allowing it to emit signals uniformly in all directions. This feature ensures optimal coverage in indoor areas, making it perfect for distributing signals across larger spaces without dead zones.
Q: Can the GL6040V3 antenna be used in a variety of indoor settings?
A:Absolutely! The GL6040V3 is versatile and can be used in various indoor environments such as offices, warehouses, shopping malls, and residential buildings. Its sleek design and effective performance make it an excellent solution for enhancing network connectivity wherever it is installed.
Q: Is the GL6040V3 antenna weatherproof?
A: While the GL6040V3 antenna is designed primarily for indoor use, the anti-ultraviolet ABS radome provides some protection against environmental factors. However, for outdoor applications, we recommend using antennas specifically designed for such conditions to ensure optimum performance and longevity.
