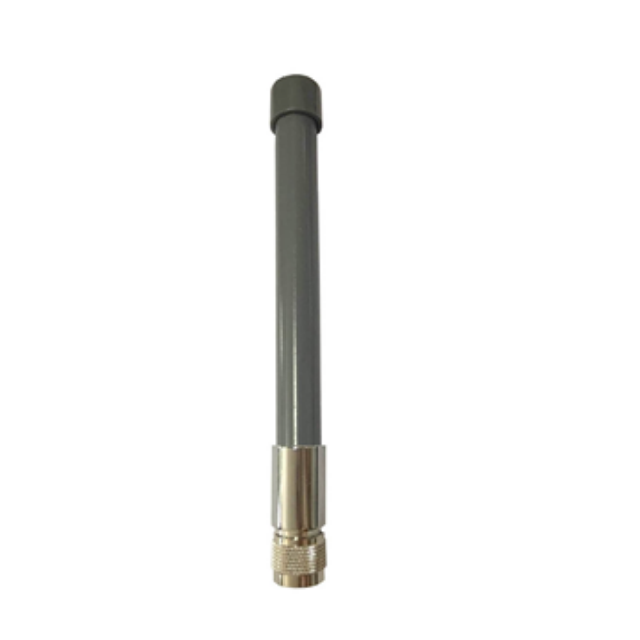

GL6283V-5
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |
Frequency Range | 6200—6800/7700-8300MHz |
V S W R | ≤2.0 |
Gain | 5dBi |
Horizontal beam width | 360° |
Vertical beam width | 23° |
Polarization | Vertical |
Input Impedance | 50Ω |
Max power | 50W |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N male |
Connector location | bottom |
Dimensions | Ф22×160mm |
Antenna weight | 0.2kg |
Radome material | Fiberglass |
Radome color | gray |
Operating temperature | -40°c～60°c |
Rated Wind Velocity | 60 m/s |
Installation | Use with suction cups and other mounting bases |
Dual-Band Flexibility: Covers 6200-6800MHz and 7700-8300MHz, ideal for high-frequency applications like military communications, drone telemetry, and industrial IoT.
True 360° Omnidirectional Coverage: Ensures seamless signal reception in all directions with a 23° vertical beamwidth for focused vertical reach.
Extreme Durability: Fiberglass radome withstands -40°C to 60°C, 60m/s wind speeds, and harsh outdoor environments.
High-Power Performance: Supports 50W max input power with ≤2.0 VSWR, minimizing signal loss for reliable long-range transmission.
Easy Installation: Includes N male connector and compatibility with suction cups/mounting bases for quick deployment on vehicles, rooftops, or poles.
Application scenarios
Drone/UAV Systems: Stable high-frequency telemetry and control in aerial operations.
Military & Defense: Secure communications in rugged, remote environments.
Industrial IoT: Reliable data transmission for oil/gas monitoring or smart grids.
Marine & Coastal Networks: Corrosion-resistant fiberglass for saltwater exposure.
Rural Broadband: Wide coverage for fixed wireless access (FWA) in remote areas.
FAQ
Q: What frequency bands does this antenna support?
A: Dual bands: 6200-6800MHz and 7700-8300MHz.
Q: Is it suitable for extreme weather?
A: Yes, its fiberglass radome and -40°C to 60°C range ensure resilience in storms, heat, or freezing conditions.
Q: How is the antenna installed?
A: Use suction cups or mounting bases (not included) for vehicles, poles, or rooftops.
Q: What connector type is used?
A: N male connector at the bottom for robust RF connectivity.
Q: Does it include lightning protection?
A: Yes, DC grounding ensures safety during electrical storms.
Q: What’s the max power capacity?
A: Handles up to 50W input power for high-performance transmission.
Q: Is this antenna directional?
A: No, it’s omnidirectional with 360° horizontal coverage.
