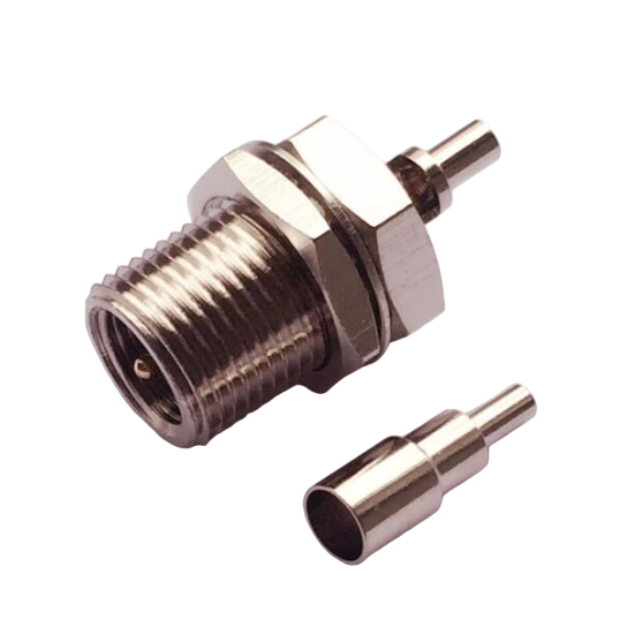

GLC28
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical specifications | |
Frequency Range(GHz) | 0-3 |
Impedance(ohm) | 50 |
Max power (W) | 50 |
VSWR | <1.2+0.002f |
Operating voltage(max) | 335v |
Pressure resistance(rms) | 1000v |
Durability | >500 cycles |
Mechanical specifications | |
Connector | FME Male/UFL |
Length of cable | 1.13cable 200mm |
Color | Gray |
Lighting protection | DC grounding |
Ferrule | Copper with nickel plated |
Body | Copper with nickel plated |
Pin | Copper with nickel plated |
Insulator | PTFE |
Temperature range | -65~ +250 |
Product Introduction
Wide - band Compatibility：The GLC28 cable covers a frequency range from 0 - 3GHz, making it suitable for a wide variety of applications. It can be used in various wireless communication systems, RF testing equipment, and other devices operating within this frequency spectrum.
Stable Impedance：With an impedance of 50Ω, the cable ensures efficient power transfer. This stable impedance is crucial for minimizing signal reflection, which is essential for maintaining signal integrity during transmission. It enables reliable performance in high - speed data transfer and signal - processing applications.
Low VSWR：The VSWR of the GLC28 is less than 1.2 + 0.002f. A low VSWR indicates good impedance matching, reducing signal reflection. This means more power is transmitted through the cable, resulting in better signal quality and overall system performance, especially in applications sensitive to signal loss.
High - power Handling：It can handle a maximum power of 50W, making it suitable for applications that require the transmission of high - power signals. This high - power - handling capacity expands its usability in power - intensive wireless and electronic setups.
Durable Build：The GLC28 has a durability of over 500 cycles. Its components, such as the copper with nickel - plated ferrule, body, and pin, offer good corrosion resistance. The PTFE insulator provides reliable electrical insulation. Additionally, it can operate in a wide temperature range from - 65℃ to +250℃, making it suitable for use in diverse environmental conditions.
Wireless Communication Devices：In mobile phones, tablets, and wireless access points, the GLC28 cable can connect antennas to RF modules. Its wide frequency range and low VSWR ensure efficient signal transmission and reception, enhancing the wireless performance of these devices.
RF Testing Equipment：For RF testing equipment like signal generators, spectrum analyzers, and network analyzers, the GLC28 cable is an excellent choice. It can accurately transmit signals between different components of the testing setup, enabling precise measurements due to its stable impedance and low VSWR.
Satellite Communication Systems：In satellite communication ground stations or portable satellite devices, the GLC28 cable can link the satellite antenna to the receiver or transmitter. Its high - power - handling capacity and wide temperature range make it suitable for the harsh conditions of satellite communication, ensuring reliable signal transmission.
Industrial Wireless Monitoring：In industrial environments with wireless sensors and control systems for equipment monitoring and process control, the GLC28 cable can connect these devices. Its durability and stable performance ensure reliable communication in noisy industrial settings, even in the face of vibrations and temperature variations.
Aviation and Aerospace Electronics：In aircraft and aerospace equipment, where reliable signal transmission is crucial, the GLC28 cable can be used for various RF - related functions. Its wide temperature range and high - quality construction make it suitable for the demanding environment of aviation and aerospace.
Q:What is the frequency range of the GLC28 cable?
A:The frequency range of the GLC28 cable is 0 - 3GHz.
Q:What is the impedance of the GLC28 cable?
A:The impedance of the GLC28 cable is 50Ω.
Q:What type of connectors does the GLC28 cable have?
A:The GLC28 cable has FME Male and UFL connectors.
Q:What is the maximum power the GLC28 cable can handle?
A:The GLC28 cable can handle a maximum power of 50W.
Q:What is the length of the GLC28 cable?
A:The length of the GLC28 cable is 200mm.
Q:What is the VSWR of the GLC28 cable?
A:The VSWR of the GLC28 cable is less than 1.2 + 0.002f.
Q:Does the GLC28 cable have lightning protection?
A:Yes, the GLC28 cable has DC grounding for lightning protection.
Q:What is the temperature range of the GLC28 cable?
A:The temperature range of the GLC28 cable is - 65℃ to +250℃.
