GL-DY7027H3
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | ||
Frequency Range-MHz | 698-960 | 1710-2700 |
VSWR-dBi | ≤1.8 | ≤1.5 |
Gain | 2.5 | 3.5 |
Horizontal beam width | 360° | 360° |
Vertical beam width | 65° | 55° |
Polarization | Horizontal | |
Intermodulation IM3 (2x33dBm)- dBc | ≤-150 | |
Input Impedance-Ω | 50 | |
Maximum input power-W | 50 | |
Lightning protection | DC Ground | |
Mechanical Specifications | ||
Input connector type | N-K | |
Dimensions-mm | Ø218×40 | |
Antenna weight-KGS | 0.4 | |
Radiating Element Material | AI | |
Radome material | ABS | |
Radome color | White | |
Operating temperature | -40°C to +65 °C | |
Electrical Specifications | ||
Frequency Range-MHz | 698-960 | 1710-2700 |
VSWR-dBi | ≤1.8 | ≤1.5 |
Gain | 2.5 | 3.5 |
Horizontal beam width | 360° | 360° |
Vertical beam width | 65° | 55° |
Polarization | Horizontal | |
Intermodulation IM3 (2x33dBm)- dBc | ≤-150 | |
Input Impedance-Ω | 50 | |
Maximum input power-W | 50 | |
Lightning protection | DC Ground | |
Mechanical Specifications | ||
Input connector type | N-K | |
Dimensions-mm | Ø218×40 | |
Antenna weight-KGS | 0.4 | |
Radiating Element Material | AI | |
Radome material | ABS | |
Radome color | White | |
Operating temperature | -40°C to +65 °C | |
Product Introduction

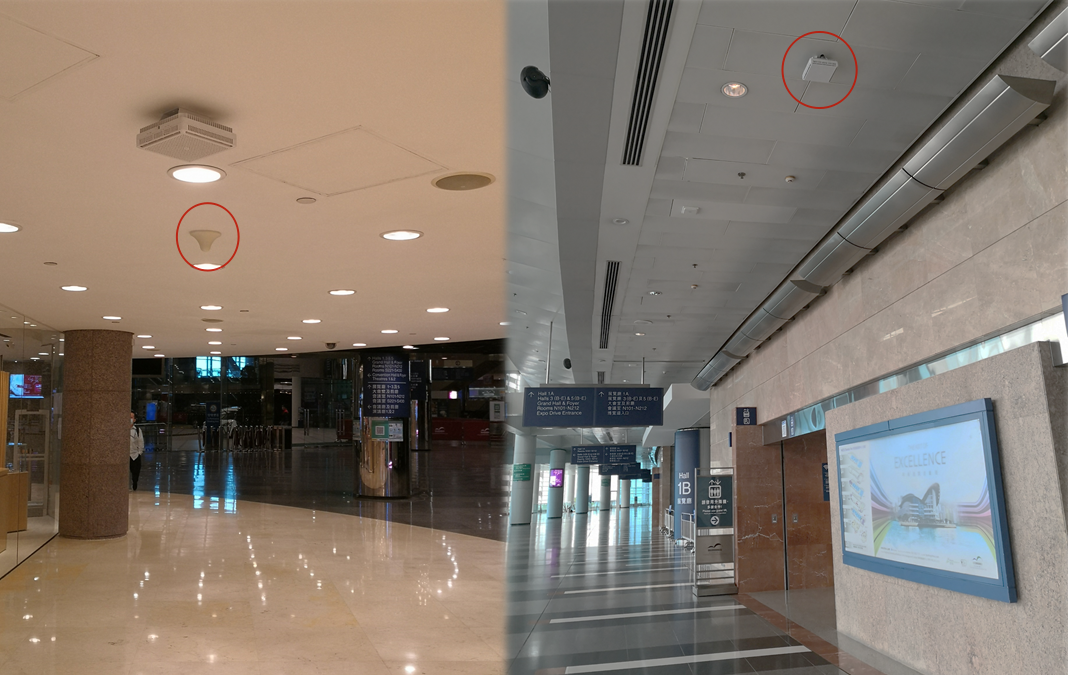

Lightweight and Compact Design：The GL-DY7027H3 is lightweight and small - sized, making it easy to install on ceilings without adding significant weight or taking up much space. This design is ideal for indoor environments where space may be limited, such as offices, shopping malls, and hotels.
Wideband Performance：Operating across the 698 - 960MHz and 1710 - 2700MHz frequency bands, it offers wideband functionality. This allows it to support multiple wireless systems, including 2G, 3G, 4G, and some WLAN applications, providing versatile connectivity in indoor settings.
Good Signal Gain：With a gain of 2.5 dBi in the 698 - 960MHz band and 3.5 dBi in the 1710 - 2700MHz band, the antenna effectively boosts the signal strength. It helps to extend the coverage area within the indoor space, reducing signal dead zones and ensuring a more stable connection for wireless devices.
Anti - ultraviolet ABS Radome：The antenna features an anti - ultraviolet ABS radome, which protects the internal components from UV damage. This is important for indoor applications where the antenna may be exposed to sunlight through windows or other sources. The radome also provides some level of protection against dust and minor impacts.
360° Horizontal Beamwidth：The 360° horizontal beamwidth ensures comprehensive coverage in all horizontal directions. This is beneficial for indoor distributed antenna systems as it can evenly distribute the signal around the installation area, reaching wireless devices regardless of their position in the room.
Application scenarios
Office Buildings: Enhances cellular and Wi-Fi coverage in open-plan workspaces.
Hotels & Malls: Provides consistent connectivity for guests and IoT devices (e.g., smart HVAC, security systems).
Hospitals: Supports critical communication systems and medical IoT equipment.
Underground Parking: Ensures reliable signal penetration for emergency calls or vehicle tracking.
FAQ
Q:Is this antenna suitable for 5G networks?
A:Yes, it covers 1710-2700MHz, including key 5G sub-6GHz bands.
Q:Can it be used outdoors?
A:No, it’s designed for indoor use. The ABS radome lacks full waterproofing.
Q:What’s the vertical coverage angle?
A:65° (698-960MHz) and 55° (1710-2700MHz), ideal for multi-floor signal distribution.
Q:Does it require a ground plane?
A:No, the omnidirectional design ensures coverage without additional grounding.
Q:Is the N-K connector compatible with standard cables?
A:Yes, it works with standard N-type connectors for easy integration.
Q:What’s the warranty period?
A:The antenna comes with a 2-year warranty against manufacturing defects.
