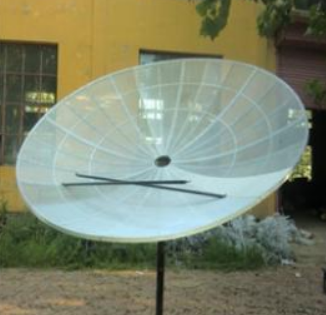

GL-DYS500AM12PM
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Item No | GL-DYS500AM12PM | |
Panel(Sector Divided) | 12 | |
Aperture Diameter | 500CM | |
C-Band Gain@ 4GHz | 46.5dB | |
Ku-Band Gain@12.5GHz | ||
F/D Ratio | 0.38 | |
Focus Length | 190CM | |
Material | Aluminium Mesh | |
Finish | Polyester Powder Coating | |
Mounting Type | Pole/Polar Mount | |
Elevation Alignment | 0～90° | |
Azimuth Alignment | 0～360° | |
Operational Winds | Able to receive | 25m/sec |
Able to re-set | 40m/sec | |
Not broken & fly away | 60m/sec | |
Ambient Temperature | -40℃～+60℃ | |
Relative Humidity | 0～100% | |
Product Introduction
46.5dB C-Band Gain: Unmatched signal strength for critical applications like military data transmission or remote broadcasting.
500CM Aperture: Maximizes signal capture for weak coverage areas, ideal for deserts, mountains, or oceanic regions.
60m/sec Wind Resistance: Engineered to withstand hurricanes and extreme weather, ensuring reliability in storm-prone zones.
Extreme Climate Compatibility: Operates flawlessly from -40℃ to +60℃, perfect for Arctic bases or tropical installations.
12-Panel Modular Design: Easy transport and assembly with precision 0-90° elevation and 360° azimuth adjustments for optimal alignment.
Use Cases:
Long-range satellite communication in isolated terrains.
Military/government secure data links in harsh environments.
Offshore oil rigs or maritime vessels requiring stable connectivity.
Disaster recovery teams during hurricanes or floods.
FAQ
Q:Is the GL - DYS500AM12PM difficult to install?
A:The GL - DYS500AM12PM has a pole/polar mount design with adjustable elevation and azimuth alignment. While some technical knowledge may be required, following the installation instructions carefully should make the installation process manageable. However, for optimal alignment, it may be helpful to seek professional assistance.
Q:What is the significance of the 46.5dB gain in the C - Band?
A:The 46.5dB gain in the C - Band allows the antenna to amplify weak satellite signals effectively. This results in a stronger and more stable connection, which is crucial for clear satellite communication, high - quality broadcast reception, and other C - Band - based services.
Q:Can the GL - DYS500AM12PM be used for Ku - Band applications?
A:The provided information does not specify the Ku - Band gain of the GL - DYS500AM12PM. It is primarily designed with a focus on C - Band performance. Using it for Ku - Band applications may not yield optimal results, and it's advisable to use an antenna specifically designed for Ku - Band for such services.
Q:How do I adjust the elevation and azimuth of the GL - DYS500AM12PM?
A:The GL - DYS500AM12PM has adjustable elevation (0 - 90°) and azimuth (0 - 360°) alignment. You can use appropriate tools to loosen and adjust the mounting components according to the installation manual. Making these adjustments carefully is important to optimize the antenna's position for the best signal reception.
Q:What is the warranty period for the GL - DYS500AM12PM?
A:The provided information does not mention the warranty period. Please contact our sales team or check the product documentation for specific warranty details.
Q:Can the GL - DYS500AM12PM withstand extreme weather conditions?
A:The GL - DYS500AM12PM can operate in a temperature range of - 40℃ to +60℃, a relative humidity of 0 - 100%, and withstand winds up to 60m/sec. While it can handle most extreme weather conditions within these limits, in extremely severe weather, additional precautions may be needed to ensure its stability and performance.
