GLC31
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical specifications | |
Frequency Range(GHz) | 0-3 |
Impedance(ohm) | 50 |
Max power (W) | 50 |
VSWR | ≤1.30+0.002f |
Operating voltage(max) | 335v |
Pressure resistance(rms) | 1000v |
Durability | >500 cycles |
Mechanical specifications | |
Connector | RP SMA Female/IPEX |
Length of cable | RG178 cable 200mm |
Color | Black |
Lighting protection | DC grounding |
Ferrule | Copper with nickel plated |
Body | Copper with nickel plated |
Pin | Copper with nickel plated |
Insulator | PTFE |
Temperature range | -65~ +250 |
Product Introduction

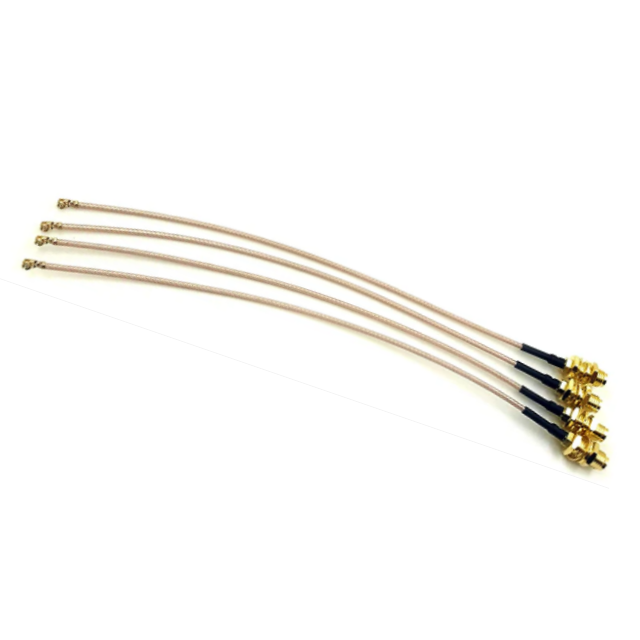

Wide Frequency Range: The GLC31 cable can operate across a 0 - 3GHz frequency spectrum. This wide - band performance makes it adaptable for various wireless communication systems, RF testing equipment, and other devices operating within this frequency range.
Stable 50Ω Impedance: With an impedance of 50Ω, the cable ensures efficient power transfer. This stable impedance minimizes signal reflection, which is crucial for maintaining signal integrity during transmission, especially in high - speed data transfer applications.
Low VSWR: The voltage standing wave ratio (VSWR) of ≤1.30 + 0.002f indicates good impedance matching. A low VSWR reduces signal reflection, ensuring that most of the power is effectively transmitted through the cable, thus enhancing signal quality and overall system performance.
High - power Handling: It can handle a maximum power of 50W. This high - power - handling capacity makes the cable suitable for applications that require the transmission of high - power signals, such as in industrial and professional wireless setups.
Durable Construction: The GLC31 has a durability of over 500 cycles. Its components, including nickel - plated copper ferrule, body, and pin, offer good corrosion resistance. The PTFE insulator provides reliable electrical insulation. Moreover, it can function in a wide temperature range from - 65℃ to +250℃, making it suitable for use in diverse environmental conditions.
Application scenarios
Wireless communication equipment (e.g., routers, IoT devices).
RF testing and measurement instruments.
Drone/UAV signal transmission systems.
Military-grade or industrial electronics requiring rugged cables.
FAQ
Q: What frequency range does this cable support?
A: 0-3 GHz, suitable for most wireless applications.
Q: Is the cable waterproof?
A: No, but its PTFE insulation ensures resistance to heat and corrosion.
Q: Can I customize the cable length?
A: Standard length is 200mm (as per specs), but contact us for customization.
Q: Does it support outdoor use?
A: Yes, with DC grounding for lightning protection and a wide temperature tolerance.
Q: What devices are compatible?
A: Compatible with RP SMA Female and IPEX-based antennas, routers, and RF modules.
Q: How durable is the connector?
A: Nickel-plated copper ensures >500 mating cycles.
Q: What is the VSWR performance?
A: ≤1.30+0.002f, ensuring minimal signal loss.
Q: Is this cable RoHS compliant?
A: Yes, it meets standard environmental and safety regulations.
