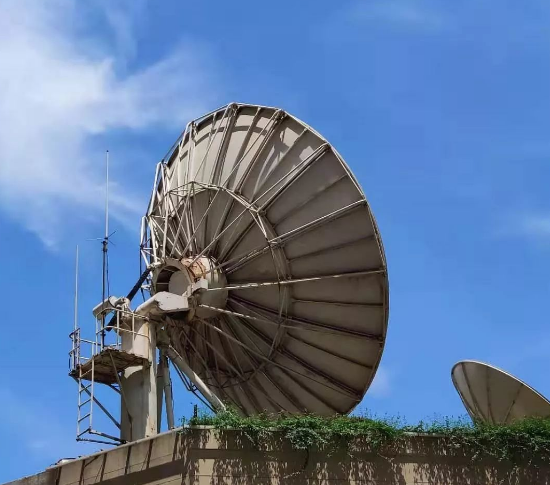

NS-SEC-240
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Product Introduction

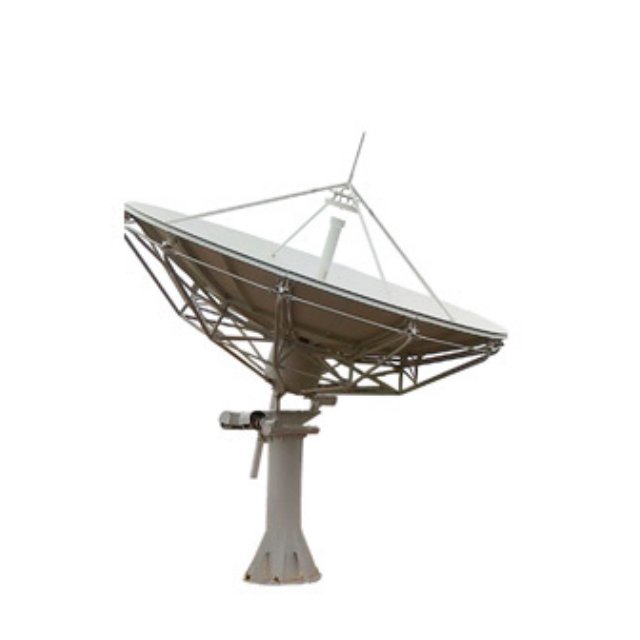

High - performance Communication：The NS - SEC - 240 2.4m Earth Station Antenna offers high gain and a high G/T rate. For example, in different frequency bands like C - band, Ku - band, and Ka - band, it has remarkable gain values such as 37.71 dBi at 3.95GHz in C - band. This ensures efficient signal transmission and reception, making it suitable for various satellite communication needs.
Multi - band Compatibility：It supports multiple frequency bands including L band, S band, X band, C band, Ku band, Ka band, and QV band, with customized frequencies also available. This wide - range of band support allows users to use it in different communication systems and applications, providing great flexibility.
Excellent Durability：The steel parts of the antenna are hot - dip zinc processed, which gives it strong corrosion - resistant ability. It can withstand harsh environmental conditions such as high humidity (100%), icing (up to 25mm without damage), and a wide temperature range from - 30 to 50 ℃, ensuring long - term reliable operation.
Meets Strict Standards：The antenna meets or exceeds CCIR 580 and Intelsat requirements, as well as the network access requirements of Intelsat, Asiasat, and Chinasat. This compliance with international and regional standards guarantees its quality and performance in global satellite communication networks.
Customizable Options：There are various optional features. Users can choose from different structure types like A + E type, A + E - T type, X - Y type. They can also select additional components such as the antenna servo system, NPM, BUC, LNB, Modem, spectrum analyzer, etc. Moreover, the antenna color can be customized, providing a personalized solution for different users.
Application scenarios
Satellite Networks: Deploy in teleports for Intelsat/Asiasat uplinks.
Military/Defense: Secure communication in harsh climates (military green color option).
Broadcast TV: High-power transmission (2KW capacity) for HD signal distribution.
Remote Areas: Emergency communication in disaster zones with 100% humidity tolerance.
Research Stations: Reliable data transfer in polar/extreme temperature regions.
FAQ
Q:What frequency bands does it support?
A:C (3.625–4.2GHz), Ku (10.95–14.5GHz), Ka (17.7–31GHz), and custom bands.
Q:What is the gain at 14.125GHz?
A:48.78 dBi, ensuring strong signal strength for high-frequency applications.
Q:Can it operate in icy conditions?
A:Yes, works normally under 13mm ice and survives 25mm ice loads.
Q:Is the servo system included?
A:Optional; choose manual or motorized drive during configuration.
Q:What’s the survival wind speed?
A:216km/h, tested for structural integrity in storms.
Q:Are color customizations available?
A:Yes: white, silver, military green, or specified colors.
Q:What’s the antenna noise temperature at 20° elevation?
A:44.8K (C-band), 50K (Ku), 86K (Ka) for minimal signal interference.
